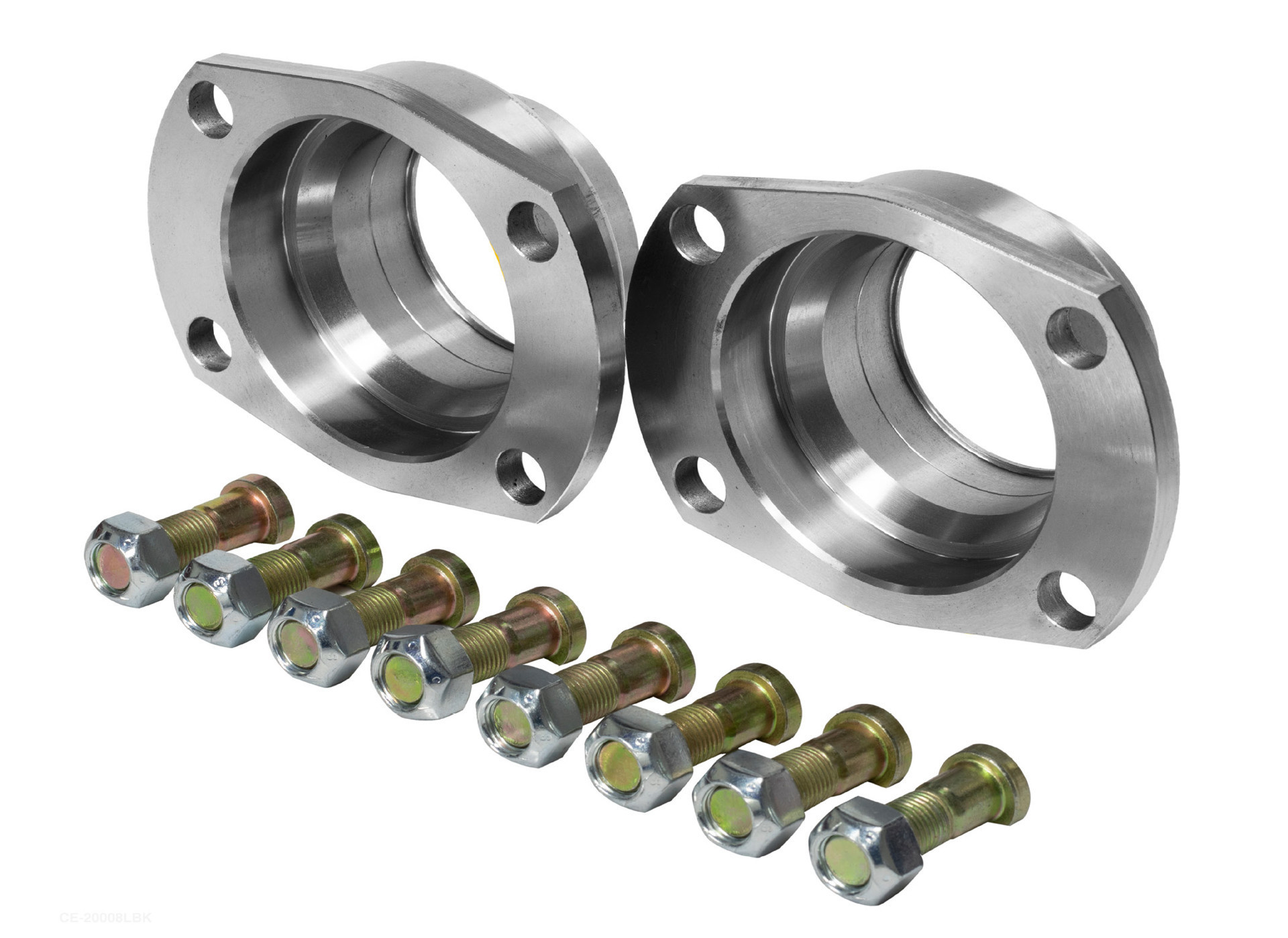

Early Big Bearing Housing End Kit - Slide-In Style

Previous productSmall Bearing Housing End S...
Next productEarly Big Bearing Housing E...





Slide-in style early big bearing housing ends with internal seal provision


Details:

  • CNC Machined Billet Steel Construction
  • Designed to Slide Into the End of the Axle Tubes
  • Accepts Ford Big Tapered or Ball Type Axle Bearing with 3.150 In. OD
  • Internal Seal Provision for 2.50 In. OD Seal
  • Flange Bolt Pattern Measures 3.50 x 2.375 In. (Early Big Bearing)
  • Kit Includes (2) Housing Ends and (8) 1/2 In. T-Bolts with Stover Lock Nuts

SKU: CE-2008LBk
Estimated Lead Time: 2 weeks
$135.00
