Currie Extreme 60 - High-Pinion Full-Float Jeep JL Rear Axle

The Currie Extreme 60 high-pinion full-float rear axle for the 2018 and newer Jeep Wrangler JL is designed for severe off-road use with tires up to 42-inches and V8 horsepower. The high-pinion design features Currie's exclusive rotated center section with ring gear load-bolt, a combination that delivers superior obstacle slide-over and unmatched gear strength. If you seek out the most challenging routes and toughest obstacles to conquer, the Extreme 60 axle set is a natural choice.


Details:

  • Fully Assembled Extreme 60 High-Pinion Full-Floating Rear Axle
  • 70-Inch Width Provides Improved Clearance for Large Tires
  • 8-Lug Wheel Bolt Pattern for Ultimate Reliability
  • 13.750 in. Brakes Provide Massive Stopping Power with Factory Pedal Feel
  • Satin Black Powder Coat Finish for Long Lasting Protection
  • Choice of Selectable Locker and Gear Ratio

Exclusive Extreme 60 Features:

  • Massively Reinforced Extreme 60 Center Section
  • High-Clearance Design with Rotated Cover Improves Obstacle Slide-Over
  • High-Pinion Raises the Driveshaft by 2-Inches for Additional Clearance
  • Ring Gear Load Bolt Prevents Gear Deflection to Deliver Maximum High-Pinion Gear Strength
  • High Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil
  • Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles with Ease
  • Desert Race Inspired Rear Billet Steel Full-Floating Hub Assemblies Reduce Weight and Improve Strength, and Reliability
  • Full-Floating Rear 40-Spline Chromoly Axles Deliver Unmatched Strength and Reliability

SKU: LR650
Estimated Lead Time: 8 Weeks
*
*
$9,499.00

The Extreme 60 high-pinion full-float rear axle for the 2018 and newer Jeep Wrangler JL is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require replacement to accommodate the larger 60 series housing and 1350 series u-joint



Extreme 60 High-Pinion Features

  Extreme 60 high-pinion nodular iron center section is the strongest 60 series casting we offer, with thicker walls and webbing to deliver superior strength and rigidity

Load Bolt   Ring gear load bolt (top left) eliminates gear deflection, to dramatically increase torque handling capacity. The load bolt typically sits .002 inch from the ring gear and only touches when extremely high torque loads are applied

  The Extreme 60 high-pinion radius bottom center section delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve rather than the sharp edge found on other 60 housings

  Replaceable AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminates oil starvation issues

  Large 3.5 in. diameter x .375 in. wall axle tubes (left) are more than 2 times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  13.750" vented rotors and OE Gladiator calipers provide the stopping power with factory pedal feel, while the 8-lug bolt pattern improves relabitly with large heavy tires

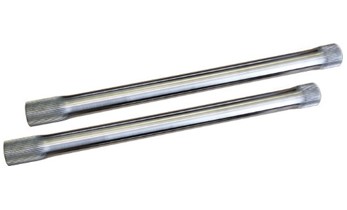

  Currie Performance 40-spline full-floating chromoly axles are the largest standard axle offered in the industry, providing 1.5 x the strength of 35-spline chromoly axles

  Desert race-inspired billet steel full-floating hubs carry the weight of the vehicle, eliminating the influence of side loading and impact shock on axle durability. Modified OEM backing plates and parking brake assemblies provide reliable operation with broad availability of serviceable wear items

  Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat   Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best







Notes

ABS Sensors: Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie Axle

Computer Programming: 2012 and newer vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recomended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Maximum recommended tire size is 42-inches

Overall Width: Axle width is 70-inches (+2 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Differential Carriers: Carriers provided by Currie for the Extreme 60, are turned down to 8.300" O.D. for load bolt clearance. If a standard O.D. carrier is installed the load bolt will need to be backed out to prevent damage

The Extreme 60 high-pinion full-float rear axle for the 2018 and newer Jeep Wrangler JL is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require replacement to accommodate the larger 60 series housing and 1350 series u-joint



Extreme 60 High-Pinion Features

  Extreme 60 high-pinion nodular iron center section is the strongest 60 series casting we offer, with thicker walls and webbing to deliver superior strength and rigidity

Load Bolt   Ring gear load bolt (top left) eliminates gear deflection, to dramatically increase torque handling capacity. The load bolt typically sits .002 inch from the ring gear and only touches when extremely high torque loads are applied

  The Extreme 60 high-pinion radius bottom center section delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve rather than the sharp edge found on other 60 housings

  Replaceable AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminates oil starvation issues

  Large 3.5 in. diameter x .375 in. wall axle tubes (left) are more than 2 times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  13.750" vented rotors and OE Gladiator calipers provide the stopping power with factory pedal feel, while the 8-lug bolt pattern improves relabitly with large heavy tires

  Currie Performance 40-spline full-floating chromoly axles are the largest standard axle offered in the industry, providing 1.5 x the strength of 35-spline chromoly axles

  Desert race-inspired billet steel full-floating hubs carry the weight of the vehicle, eliminating the influence of side loading and impact shock on axle durability. Modified OEM backing plates and parking brake assemblies provide reliable operation with broad availability of serviceable wear items

  Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat   Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best







Notes

ABS Sensors: Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie Axle

Computer Programming: 2012 and newer vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recomended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Maximum recommended tire size is 42-inches

Overall Width: Axle width is 70-inches (+2 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Differential Carriers: Carriers provided by Currie for the Extreme 60, are turned down to 8.300" O.D. for load bolt clearance. If a standard O.D. carrier is installed the load bolt will need to be backed out to prevent damage

Products specifications
Vehicle Fitment 2018 and newer Jeep Wrangler JL
Center Section Extreme 60 Nodular Iron High-Clearance Center Section with Rotated Cover, Ring Gear Load Bolt and Integrated Skid Plate
Pinion Bearing Large diameter front pinion bearing matched to rear bearing
Pinion Oiling High volume flow-thru recirculating oil system
Gear Set Dana 60™ reverse rotation thick gear sets
Differential Carrier High speed differential carriers (designed for low numerical gears) are used, enabling the use of stronger thick ring gears for all gear ratios. Carrier outside diameter is turned down to 8.30 inches for load bolt clearance
Ring Gear Load Bolt Eliminates ring gear deflection under heavy load (3/4"-16 right hand thread with Jam nut)
Pinion Yoke 1350 u-joint
Skid Plate AR400 hardened steel skid plate
Differential Cover Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes 3.5 inch diameter. .375 wall DOM tubing
Axles Currie Performance full floating 40-spline (1.7” diameter) 4340 heat treated chromoly
Floater Spindle Currie Performance 2.5-inch heat-treated 4140 Chromoly spindles
Floater Hub Currie Performance hubs with 40-spline drive flanges, tone rings installed for ABS and ESP retention
Brake Rotors 13.750 inch vented 8-lug rotors
Brake Calipers Jeep Gladiator truck OE calipers
Suspension Brackets Heavy gauge 3/16” steel mounting brackets
Geometry Optimized for lifted vehicles
Width 70” wide (between wheel mounting surfaces)
Wheel Bolt Pattern 8-lug (8 on 6 ½") with 9/16 studs
Finish Black satin powder coat
