Currie Extreme 60 - High-Pinion Jeep TJ Full-Floating Rear Axle (64 In. Wide, 5 x 5.5)

The Currie Extreme 60 full-floating rear axle for the Jeep TJ/LJ, is designed for severe off-road use with tires up to 40-inches and V8 horsepower. The high-pinion design features Currie's exclusive rotated center section with ring gear load-bolt, a combination that delivers superior obstacle slide-over and unmatched gear strength. If you seek out the most challenging routes and toughest obstacles to conquer, the Extreme 60 axle set is a natural choice.


Details:

  • Fully Assembled Extreme 60 High-Pinion Full-Floating Rear Axle
  • 64.5-Inch Width Provides Improved Clearance For Large Tires
  • 5 x 5.5 Wheel Bolt Pattern
  • Satin Black Powder Coat Finish For Long Lasting Protection
  • Choice Of Selectable Locker And Gear Ratio

Exclusive Extreme 60 Features:

  • High-Clearance Center Section With Rotated Cover Improves Obstacle Slide-Over
  • High-Pinion Design Raises The Driveshaft By 2-Inches For Additional Clearance
  • Ring Gear Load Bolt Prevents Deflection To Deliver Maximum High-Pinion Gear Strength
  • High Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed In Cool Oil
  • Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles With Ease
  • Desert Racing Inspired Billet Full-Floating Hub Assemblies
  • Full-Floating 35-Spline 4340 Chromoly Axles
SKU: TJ-RJ60VXR1, 60-0100S, 60-0112VXR
Estimated Lead Time: 4 to 6 weeks
*
*
$8,199.00

The Extreme 60 high-pinion, full-floating rear axle for 1996 thru 2006 Jeep TJ Wrangler and LJ Unlimited, is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint.



Built to the legendary Currie Standard, featuring:

  Extreme 60 high-pinion nodular iron center section is the strongest 60 series casting we offer, with heavier main caps, ARP® main bolts, with additional reinforcement in critical areas over the already strong Currie 60 center

Load Bolt   Integrated ring gear load bolt (top left) eliminates gear deflection, to dramatically increase torque handling capacity. The load bolt typically sits .002 inch from the ring gear and only touches when extremely high torque loads are applied

  The Extreme 60 high-pinion radius bottom center section delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve rather than the sharp edge found on other 60 housings

  Replaceable AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Large 3.5-inch diameter .375 wall axle tubes (left) are three times stronger than the stock JK Dana® 44 (right) without being overweight or sacrificing ground clearance

  Desert race-inspired chromoly spindles and billet steel full-floating hubs carry the weight of the vehicle, eliminating the influence of side loading and impact shock on axle durability. Safety is improved as the wheel and brake remain in place and fully functional in the rare event of an axle failure

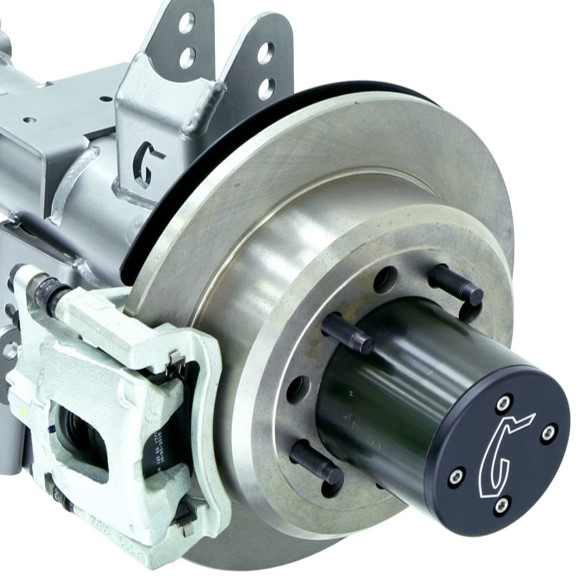

TJ 60VXR Rear Brakes   The included 12-inch Jeep JK Wrangler disc brake package provides the stopping power to tame large tires and provide balanced breaking when matched to one of our front axle assemblies

  Full-Floating 35-spline chromoly axles provide superior strength and durability over standard semi-float alloy axles

  Super tough Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

  Heavy-duty brackets feature multiple mounting options for adjusting suspension geometry to accommodate a range of vehicle lifts





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



Notes

ABS Sensors - Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie housing

Width Options - 64-inches (+2.5) or 66-inches (+4.5) over stock TJ/LJ width, provides increased clearance for 35-inch or larger tires

Sway Bar - The factory TJ/LJ rear sway bar must be flipped side to side (installed upside down) to be used with a high-pinion Extreme 60. However, due to its design, the factory sway bar will interfere/limit the housings downward travel at full droop.

Wheel Bolt Pattern - The 5-lug bolt pattern is dual-drilled with both 5 on 5 (stock JK) and 5 on 5 1/2 inches to match the Currie 60 and Extreme 60 front axle assemblies. Wheel studs are installed in the 5 on 5" pattern. The 6-lug bolt pattern is 6 on 5 1/2 inches

Wheel Studs - 5 and 6-lug wheel bolt patterns include 1/2" studs

Disk Brakes - Includes stock OE style JK backing plates (with integrated parking brake), caliper mounting brackets, JK calipers and 12-inch diameter rotors (machined to clear the full-floating hub)

The Extreme 60 high-pinion, full-floating rear axle for 1996 thru 2006 Jeep TJ Wrangler and LJ Unlimited, is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint.



Built to the legendary Currie Standard, featuring:

  Extreme 60 high-pinion nodular iron center section is the strongest 60 series casting we offer, with heavier main caps, ARP® main bolts, with additional reinforcement in critical areas over the already strong Currie 60 center

Load Bolt   Integrated ring gear load bolt (top left) eliminates gear deflection, to dramatically increase torque handling capacity. The load bolt typically sits .002 inch from the ring gear and only touches when extremely high torque loads are applied

  The Extreme 60 high-pinion radius bottom center section delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve rather than the sharp edge found on other 60 housings

  Replaceable AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Large 3.5-inch diameter .375 wall axle tubes (left) are three times stronger than the stock JK Dana® 44 (right) without being overweight or sacrificing ground clearance

  Desert race-inspired chromoly spindles and billet steel full-floating hubs carry the weight of the vehicle, eliminating the influence of side loading and impact shock on axle durability. Safety is improved as the wheel and brake remain in place and fully functional in the rare event of an axle failure

TJ 60VXR Rear Brakes   The included 12-inch Jeep JK Wrangler disc brake package provides the stopping power to tame large tires and provide balanced breaking when matched to one of our front axle assemblies

  Full-Floating 35-spline chromoly axles provide superior strength and durability over standard semi-float alloy axles

  Super tough Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

  Heavy-duty brackets feature multiple mounting options for adjusting suspension geometry to accommodate a range of vehicle lifts





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



Notes

ABS Sensors - Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie housing

Width Options - 64-inches (+2.5) or 66-inches (+4.5) over stock TJ/LJ width, provides increased clearance for 35-inch or larger tires

Sway Bar - The factory TJ/LJ rear sway bar must be flipped side to side (installed upside down) to be used with a high-pinion Extreme 60. However, due to its design, the factory sway bar will interfere/limit the housings downward travel at full droop.

Wheel Bolt Pattern - The 5-lug bolt pattern is dual-drilled with both 5 on 5 (stock JK) and 5 on 5 1/2 inches to match the Currie 60 and Extreme 60 front axle assemblies. Wheel studs are installed in the 5 on 5" pattern. The 6-lug bolt pattern is 6 on 5 1/2 inches

Wheel Studs - 5 and 6-lug wheel bolt patterns include 1/2" studs

Disk Brakes - Includes stock OE style JK backing plates (with integrated parking brake), caliper mounting brackets, JK calipers and 12-inch diameter rotors (machined to clear the full-floating hub)

Products specifications
Vehicle Fitment 1997 thru 2007 Jeep Wrangler TJ and LJ
Center Section Extreme 60 Nodular Iron High-Clearance Center Section with Rotated Cover, Ring Gear Load Bolt and Integrated Skid Plate
Bearing Caps Increased cross section nodular iron caps secured with ARP® fasteners
Pinion Bearing Large diameter front pinion bearing matched to rear bearing
Pinion Oiling High volume flow-thru recirculating oil system
Gear Set Dana 60™ reverse rotation thick gear sets (compatible with super 60 reverse cut gears)
Differential Carrier High speed differential carriers (designed for low numerical gears) are used, enabling the use of stronger thick ring gears for all gear ratios. Carrier outside diameter is turned down to 8.30 inches for load bolt clearance
Load Bolt Eliminates ring gear deflection under heavy load (3/4"-16 right hand thread with Jam nut)
Pinion Yoke 1350 u-joint
Skid Plate AR400 hardened steel skid plate
Differential Cover Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes 3.5 inch diameter. .375 wall DOM tubing
Axles Currie Performance full-floating 35-spline (1.5 in. diameter) 4340 heat treated chromoly
Floater Spindle Currie Performance 2.5" in. 4140 Chromoly spindle
Floater Hub Currie Performance hubs with 35-spline drive flanges
Brake Rotors 12" vented rotors with zinc plated caliper brackets
Brake Calipers JK calipers with brake pads
Suspension Brackets Heavy gauge 3/16” steel mounting brackets with multiple mounting locations that enable the suspension geometry to be tuned
Geometry Optimized for 4” lift kits with 5 degrees of pinion angle to reduce driveshaft angle
Width 64.5 inches wide between wheel mounting surfaces
Wheel Bolt Pattern 5-lug ( 5 on 5.5 in.) with 1/2 in. studs
Finish Unfinished, ready for paint
