Complete, ready-to-run, drop-in nodular iron case Ford 9-inch third member set up for 35-spline axles. Options include choice of differential type, and gear ratio

***CONFIGURE OPTIONS TO SEE FULL PRICE***

SKU: CE-4028K
Estimated Lead Time: 3-5 days
*
*
*
*
$1,027.00
PROP 65 WARNING:

Complete drop-in Currie 9-inch third member set up for 35-spline axles. Includes choice of differential type and gear ratio so it’s easy to build the perfect solution for your street rod, muscle car or truck

All Currie 9-inch third members are assembled by our in-house experts with decades of rearend setup and assembly experience, so you can trust the finished product



Currie 9-inch Third Member Features:

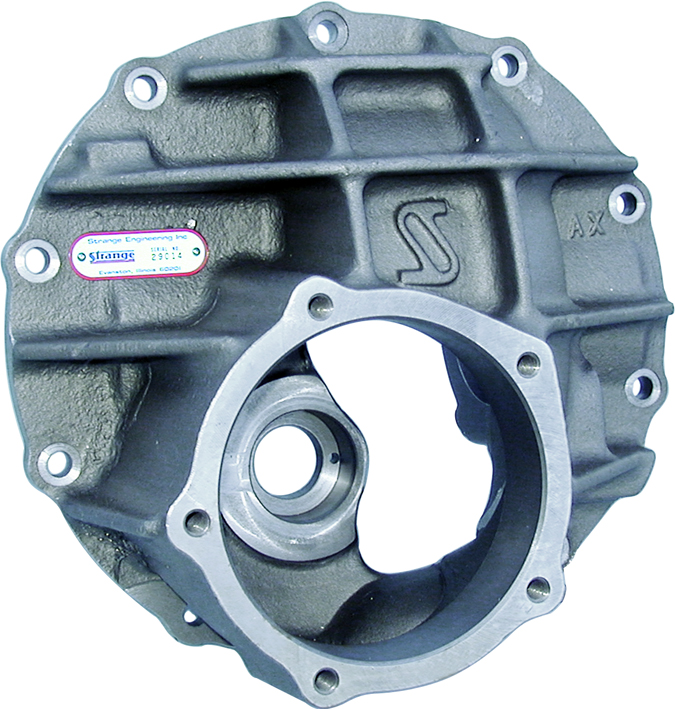

Nodular Iron Race Gear Case   Gear Case - New 9-inch nodular iron gear case with 3.250 bore carrier bearings for 35-spline axles

Aluminum Big Bearing Pinion Support   Pinion Support - New billet aluminum big bearing pinion support

1350 Series Short Pinion Yoke   Pinion Yoke - New 1350 series short nodular iron pinion yoke

9-inch Master Bearing Kit   Master Bearing kit - Includes Timken master bearing kit with seals and solid pinion spacer

Assembly Labor   Labor - Fully assembled and set up in-house by skilled professionals



Third Member Options:

9-inch Ring and Pinion   Gear Ratios - Select from a wide range of ratios. Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets

9-inch Limited Slip   Differential Options - Choice of 35-spline helical gear limited slip, automatic or selectable locking differentials or steel spool (See below for option details)



Differential Options Explained

Truetrac and Wavetrac - Helical gear limited slip differentials (LSD) are the modern replacement for the classic clutch style LSDs. Under normal driving conditions, a helical gear LSD operates as a standard or open differential, allowing one wheel to spin faster or slower as necessary without the noise or harsh operation of a clutch style LSD. When a drive wheel begins to slip, the helical gears inside the differential automatically engage, transferring torque to both rear wheels to maximize traction. When the wheels regain traction, the differential resumes normal operation. Unlike a traditional clutch type LSD, helical gear LSDs require no special oil additive or maintenance to replace worn and tired clutches, as these units have no wearable parts, require no special maintenance and maintain their torque bias for the life of the unit.

ARB Air Locker - Selectable locking differential, allows the driver to positively lock or unlock the differential on demand with the flick of a dash-mounted switch. As the name implies, an onboard air compressor (sold separately) is used to apply the locking force. Once locked, the differential behaves like a spool, driving both wheels equally. When unlocked the locker behaves like an open differential, driving only one wheel at a time – usually the wheel with the least traction. The key benefits of the ARB Air Locker are its predictable behavior and legendary strength.

Detroit Locker - Automatic locking differential, designed to lock and unlock automatically when torque is applied in either a forward or reverse direction when locked it acts like a spool driving both wheels equally.  When coasting or rolling into a corner (no torque applied) the Detroit Locker unlocks and momentarily operates like an open differential permitting the wheels to rotate freely. When torque is applied, exiting the corner the unit locks and drives both wheels equally. The key benefits of the Detroit Locker are its rugged construction and superb performance. The only negative is that the automatic lock and unlock operation can create a clunking sensation that can be both felt and heard in the vehicle.

Spool – The spool is the simplest and strongest option, but it lacks differential action, as both axles are joined together by the spool's solid center. Spools are not recommended for the street, as the place high twisting loads on the axles, increase tire wear and can negatively impact handling. Spools are typically only used for drag racing applications where straight-line performance is the only concern.
