Universal Crate Rearend features a new Currie Hot Rod 9-inch round back housing with 31-spline performance axles and are available in widths from 55 to 58 inches. Universal housings do not include suspension or shock mounting brackets
Crate rearend include a choice of differential type, gear ratio, and brake options, making it easy to customize the package to meet almost any need
SKU: CE-4026CK, CE-0118
Estimated Lead Time: 2 to 3 weeks
*

Width Between Wheel Mounting Surfaces (WBWMS)

*
*
*
*
*
*
*
$2,216.95
PROP 65 WARNING:

Universal 9-inch crate rearend are built with the pinion centered on the housing and feature 3-inch diameter axle tubes with Torino style large bearing housing ends. Axles are Currie Perfromance 31-spline, with dual wheel bolt patterns and include wheel bearings and heavy duty 1/4 inch thick bearing retainer plates. Universal housings do not include suspension or shock mounting brackets



Included Standard Features

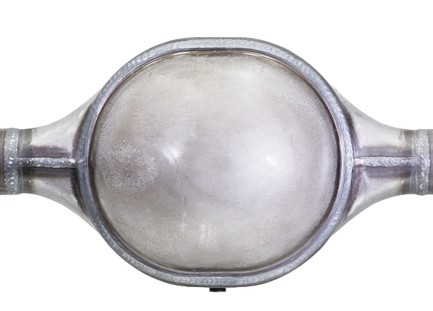

  Currie Hot Rod Housing - Classic round back looks in a new, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat, leak-free seal - all joined together with strong, attractive welds

  Currie Sportsman Case - New nodular iron gear case with Daytona big bearing pinion support and 1330 yoke is the perfect foundation for a performance restomod build - no used or reconditioned parts here!

  Master Bearing Kit - High-quality Timken bearings and performance seals are used throughout to provide a long trouble-free service life

  Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

  Alloy Axles - Currie Performance 31-spline 1541 alloy axles with dual drilled bolt patterens and Timken tapered axle bearings. Full set of both 1/2 and 7/16-inch studs are shipped loose

  Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life. *Select aftermarket brake kits require the use of proprietary bearing retainers





 Options To Complete The Build

  Gear Ratio - Select from a wide variety of ratios, Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets in our 9-inch crate rearends

  Differential - Select the differential type that meets your traction needs, including standard open, helical gear or clutch style limited slip, automatic or selectable locking differential or steel spool

  Brake Package - Select from a range of brake options from classic 11-inch drums to 14-inch Baer and Wilwood disk brakes that are capable of meeting any performance requirement

  REM® Isotropic Polishing - Removes surface imperfections created during the gear manufacturing process. Polishing eliminates the need for a break-in period, decreases friction, reduces operating temps and removes stress risers. This option helps gears last longer and run quieter

  Fill Cap - Make those oil changes easy with the optional high mounted aluminum fill cap

  Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



NOTES:

Mounting Brackets - Universal 9-inch crate rearends do not include vehicle specific suspension or shock mounting brackets

Lubrication Requirements - 9-inch rearends use a high-offset hypoid gear design that requires a sever duty gear oil with API GL-6 rating. Use of oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty.

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5” brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor.

Wheel Bolt Pattern - Axles are dual drilled with 5 on 4 1/2 and 5 on 4 3/4-inch wheel bolt patterns

Wheel Studs - Includes one set of 1/2" wheel studs and one set of 7/16" wheel studs. Studs are shipped loose

Universal 9-inch crate rearend are built with the pinion centered on the housing and feature 3-inch diameter axle tubes with Torino style large bearing housing ends. Axles are Currie Perfromance 31-spline, with dual wheel bolt patterns and include wheel bearings and heavy duty 1/4 inch thick bearing retainer plates. Universal housings do not include suspension or shock mounting brackets



Included Standard Features

  Currie Hot Rod Housing - Classic round back looks in a new, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat, leak-free seal - all joined together with strong, attractive welds

  Currie Sportsman Case - New nodular iron gear case with Daytona big bearing pinion support and 1330 yoke is the perfect foundation for a performance restomod build - no used or reconditioned parts here!

  Master Bearing Kit - High-quality Timken bearings and performance seals are used throughout to provide a long trouble-free service life

  Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

  Alloy Axles - Currie Performance 31-spline 1541 alloy axles with dual drilled bolt patterens and Timken tapered axle bearings. Full set of both 1/2 and 7/16-inch studs are shipped loose

  Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life. *Select aftermarket brake kits require the use of proprietary bearing retainers





 Options To Complete The Build

  Gear Ratio - Select from a wide variety of ratios, Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets in our 9-inch crate rearends

  Differential - Select the differential type that meets your traction needs, including standard open, helical gear or clutch style limited slip, automatic or selectable locking differential or steel spool

  Brake Package - Select from a range of brake options from classic 11-inch drums to 14-inch Baer and Wilwood disk brakes that are capable of meeting any performance requirement

  REM® Isotropic Polishing - Removes surface imperfections created during the gear manufacturing process. Polishing eliminates the need for a break-in period, decreases friction, reduces operating temps and removes stress risers. This option helps gears last longer and run quieter

  Fill Cap - Make those oil changes easy with the optional high mounted aluminum fill cap

  Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



NOTES:

Mounting Brackets - Universal 9-inch crate rearends do not include vehicle specific suspension or shock mounting brackets

Lubrication Requirements - 9-inch rearends use a high-offset hypoid gear design that requires a sever duty gear oil with API GL-6 rating. Use of oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty.

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5” brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor.

Wheel Bolt Pattern - Axles are dual drilled with 5 on 4 1/2 and 5 on 4 3/4-inch wheel bolt patterns

Wheel Studs - Includes one set of 1/2" wheel studs and one set of 7/16" wheel studs. Studs are shipped loose

Products specifications
Housing Currie Hot Rod 9-inch round back housing with 3-inch diameter x .188 wall DOM tube
Center Section Currie Sportsman nodular iron case with Daytona style big bearing pinion support
Pinion Yoke 1330 series short nodular iron yoke
Axles Currrie Performance 1541 alloy 31-spline axles
Housing Ends Billet Torino style, late model large bearing
Axle Bearings Set 20 tapered roller bearing
Bearing Retainers .250 thick heavy-duty plates, finished in gold zinc plating
Wheel Bolt Pattern Dual drilled with 5 on 4 1/2 and 5 on 4 3/4-inch wheel bolt patterns
Brake Space 2.5-inch (axle standoff)
Fluid Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
Products specifications
Housing Currie Hot Rod 9-inch round back housing with 3-inch diameter x .188 wall DOM tube
Center Section Currie Sportsman nodular iron case with Daytona style big bearing pinion support
Pinion Yoke 1330 series short nodular iron yoke
Axles Currrie Performance 1541 alloy 31-spline axles
Housing Ends Billet Torino style, late model large bearing
Axle Bearings Set 20 tapered roller bearing
Bearing Retainers .250 thick heavy-duty plates, finished in gold zinc plating
Wheel Bolt Pattern Dual drilled with 5 on 4 1/2 and 5 on 4 3/4-inch wheel bolt patterns
Brake Space 2.5-inch (axle standoff)
Fluid Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
