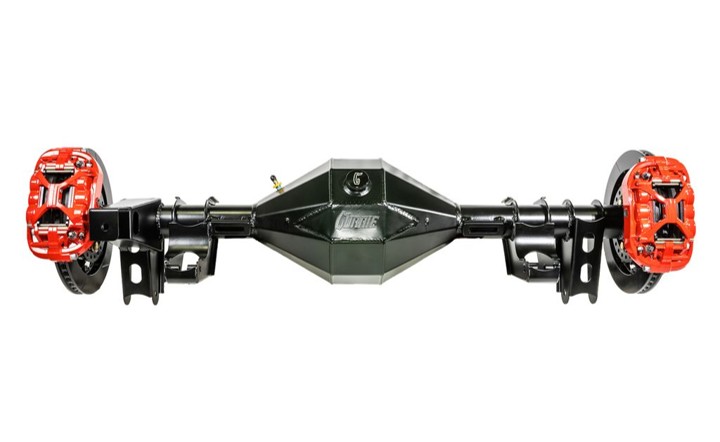

Currie Apex Floater Rear End Builder

Currie Apex Floater

For performance enthusiasts, Apex Floater rear ends deliver clear advantages over traditional semi-float axles. By isolating the axle shaft from the vehicle’s load, the full-float design eliminates unwanted brake pad knock-back experienced under heavy cornering loads. The result is more consistent braking, improved pedal feel, and reduced wear on critical components. Additionally, the rear ends can accommodate the C7 Corvette wheel-speed sensor, enabling full integration of traction control and ABS systems for advanced handling and control.

For custom car builders, Apex Floater rear ends deliver a dose of modern C7 technology to set your build apart while maintaining the classic aesthetics and strength of a 9-inch rear end.  Stepping up to an Apex Floater takes your build to the next level with full-float axles, manual or electric parking brakes, and optional integration with modern traction and control and ABS systems.

Brake options, Currie integrates Wilwood brake kits designed for Big Bearing Ford Torino-style housing ends with a 2.5-inch axle offset. These kits are offered in 11-inch to 14-inch rotor sizes, with mechanical, electronic, or no-parking-brake options, and smooth or drilled/slotted rotors to suit street, autocross, or show applications. Additionally, caliper mounting locations are 360° clockable, allowing builders to easily position the calipers out of the way of suspension bracketry or frame rails — a critical advantage in custom chassis and tight-clearance applications. No other full-float option on the market matches this level of flexibility.

Whether you’re chasing tenths on the autocross course, crafting a world-class custom car, or cruising the boulevard, the Currie Apex Floater delivers modern performance, unmatched serviceability, and a truly custom aesthetic. It’s not just another 9-inch rear end — it’s the future of performance driveline design.

Build Details:

• Choice of Housing Styles
• Rear Ends are Built to MMY Correct Width
• Suspension Brackets Installed in the OEM Locations
• 5 on 4 3/4 Wheel Bolt Pattern with 1/2-20 or 12mm-1.5 Wheel Studs
• Currie Full-Float Axles with 31-Spline Inner and 33-Spline C7 Outer
• Choice of Raw, Satin Black, or Gloss Black Powder Coat Finish
• Choice of Nodular Iron or Aluminum Gear Case
• Choice of Differential Type
• Choice of Gear Ratio
• Choice of Wilwood 11- to 14-inch Brakes, with
  Manual, Electronic, or No-Parking-Brake Option
• Professionally Set Up and Shipped Fully-Assembled

Product Features:

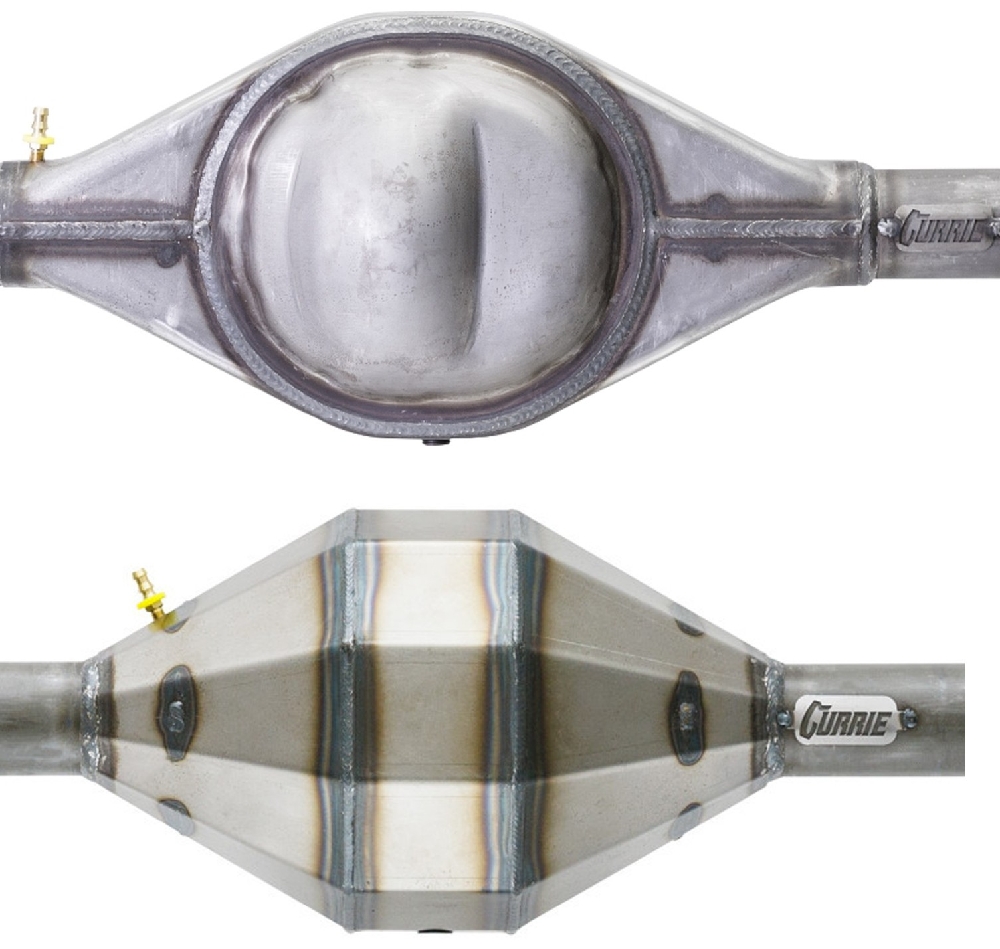

Housing Style Options

Centurion Notch Back housing (top) offers a classic look in a durable, heavy-duty muscle car housing - ideal for cruisers and high-horsepower street/strip builds

Fabricated F9 Housing (bottom) showcases modern styling and delivers exceptional strength and rigidity for high-horsepower, high-performance applications

Flush Drain Plug

This standard feature makes routine maintenance so much easier - no more removing the brakes, axles, and the third member and scooping out dirty gear oil for a simple oil change

Gear Case

A choice of nodular iron or aluminum gear case with Daytona big bearing pinion support is the perfect foundation for a performance restomod build - no used or reconditioned parts here!

Master Bearing Kit

High-quality Timken or Koyo bearings and performance seals are used throughout to provide a long, trouble-free service life

Gear Ratio

Select from a wide variety of ratios. Currie uses only the highest quality Motive Gear Performance^® series (Orange box) ring and pinion sets in our 9-inch crate rear ends

Differential

Select the differential type that meets your traction needs, including helical gear limited-slip, automatic locking differential, or steel spool

OE Fit Brackets

All Currie rear axle assemblies feature year, make, and model-correct brackets installed in the OEM locations for a direct bolt-in fit.

Currie Apex Floater Housing End

Apex Floater housing feature ends designed for C7 unit bearings and engineered to accept modified Wilwood brake kits with electronic or manual caliper parking brakes

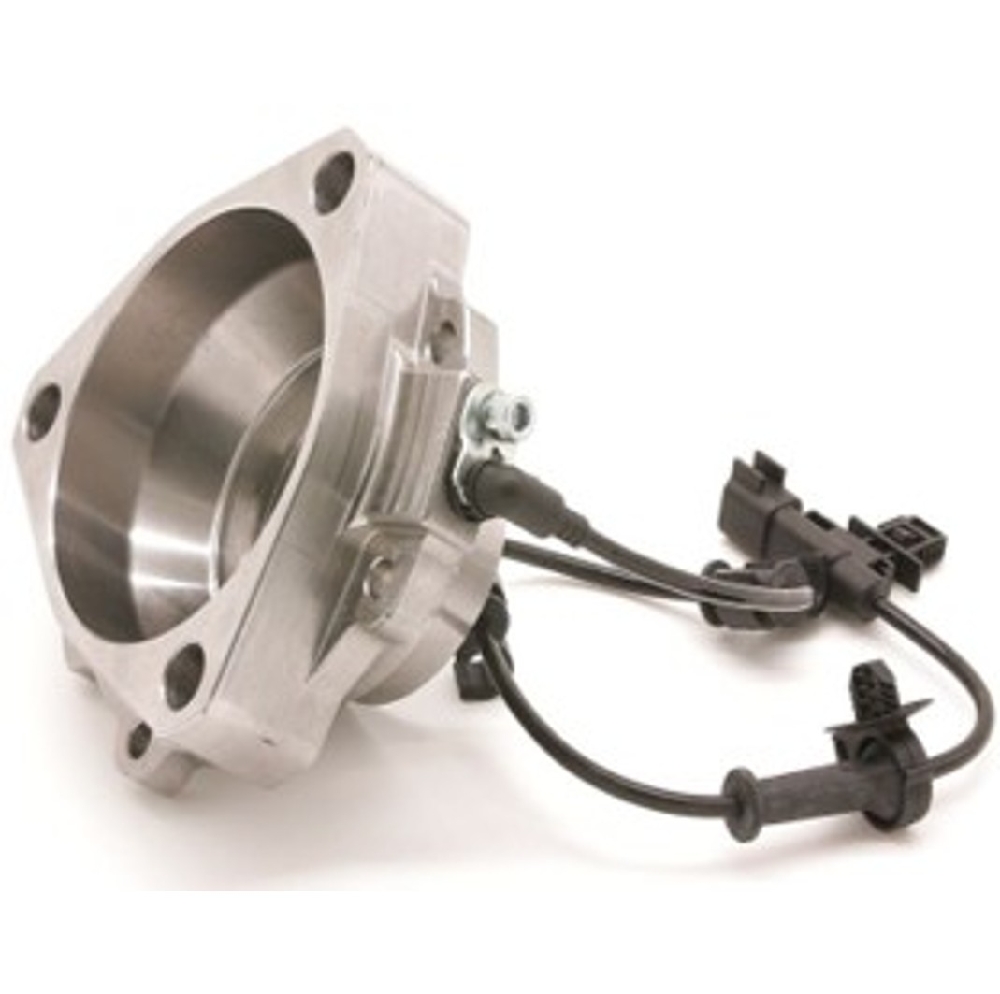

C7 Corvette Speed Sensor

Apex Floater housing ends are engineered to accept optional C7 speed sensors, enabling integration with performance computers for ABS and traction control.

Available Bolt Patterns

Currie offers C7 unit bearings with a 5 x 4.75 wheel-bolt pattern and either 12 mm or 1/2-inch studs for popular muscle-car and truck applications.

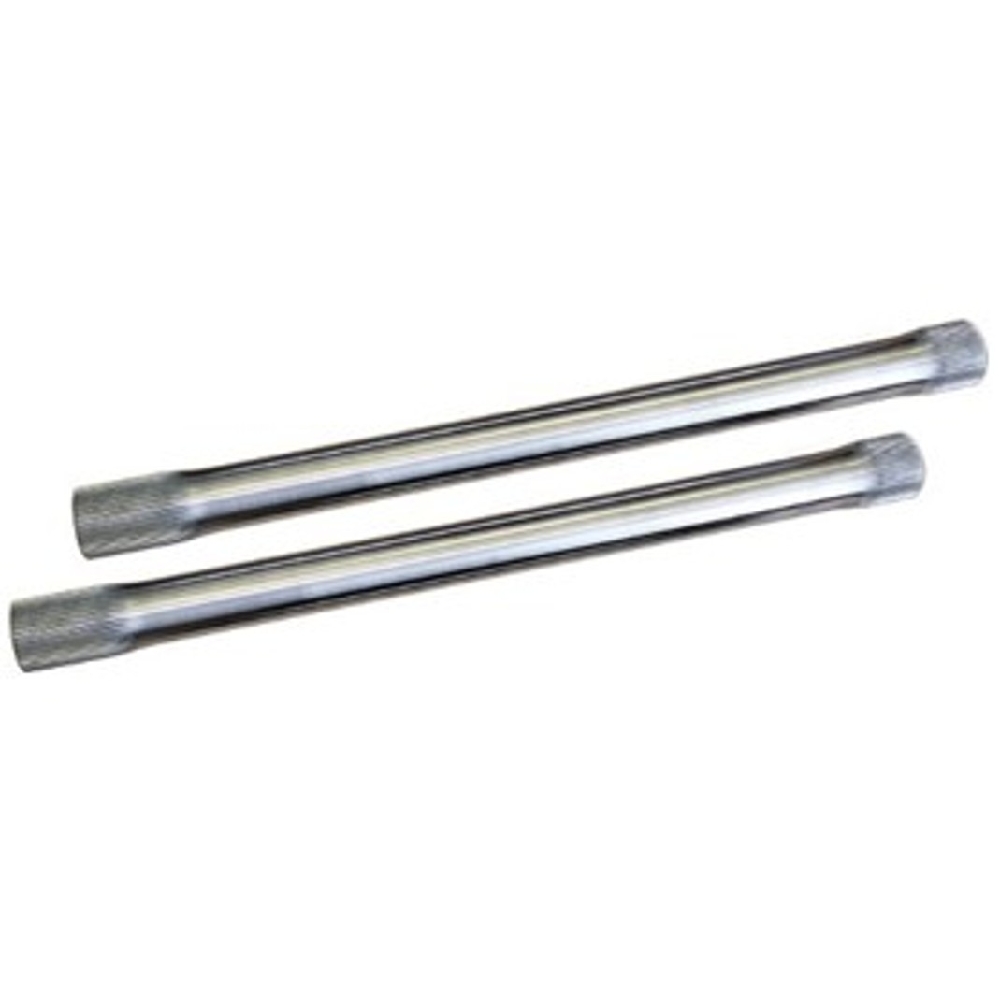

Alloy Axles

Currie Apex Floater full-float axles feature a 31-spline end for the 9-inch differential and a 33-spline hub end to match C7 unit bearings, offering maximum flexibility and compatibility.

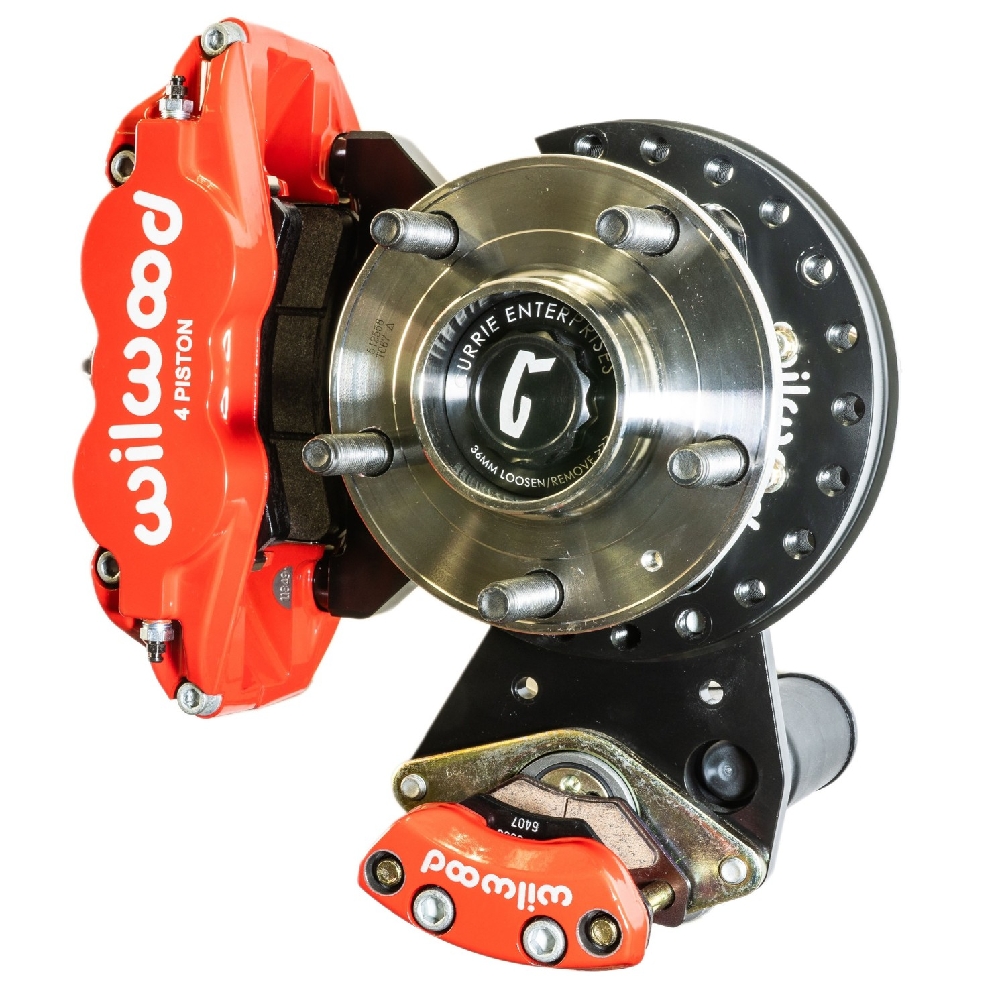

Brake Mounting Flexibility

Wilwood's round backing plate features 20 threaded holes, enabling both the stopping and parking brake calipers to be mounted independently anywhere along a 360-degree arc. This design maximizes flexibility, making it easy to clear brackets, shocks, or exhaust components.

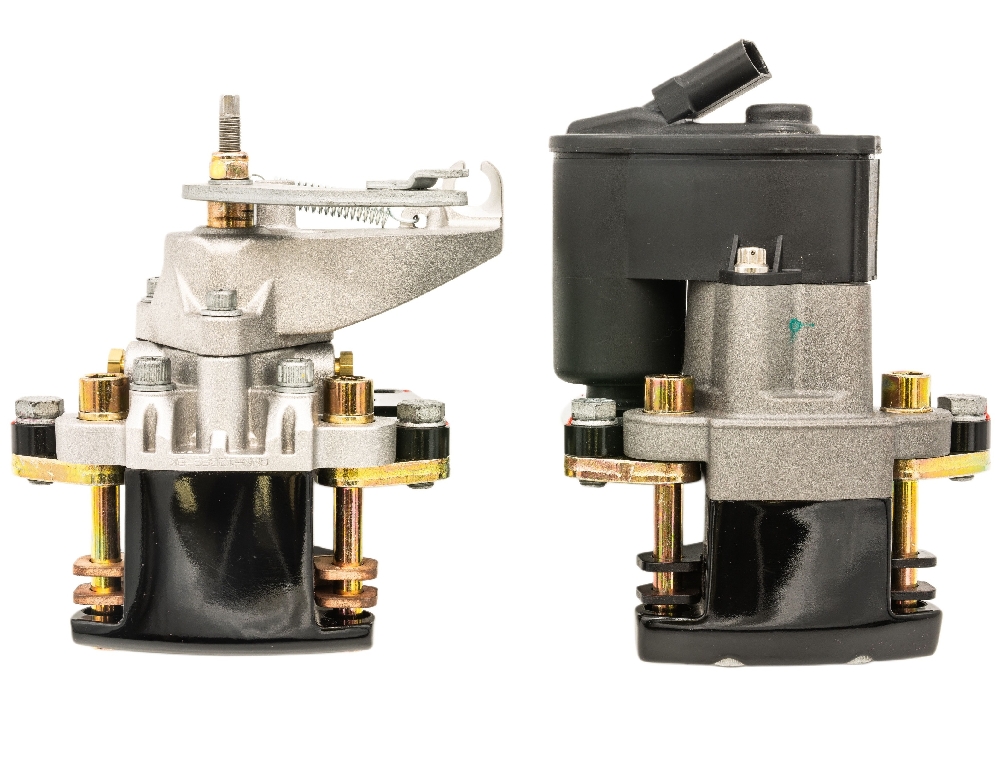

Parking Brake

Apex Floater brake options utilize Wilwood's Electronic Parking Brake packages and are available with manual cable-operated (left), electronic (right) parking-brake calipers, or without a parking brake, offering flexibility to suit your needs.

.

Powder Coat

Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rear end looking its best

Fully Assembled

Complete rear ends and third members are fully assembled in-house by our skilled professionals and shipped ready to install
