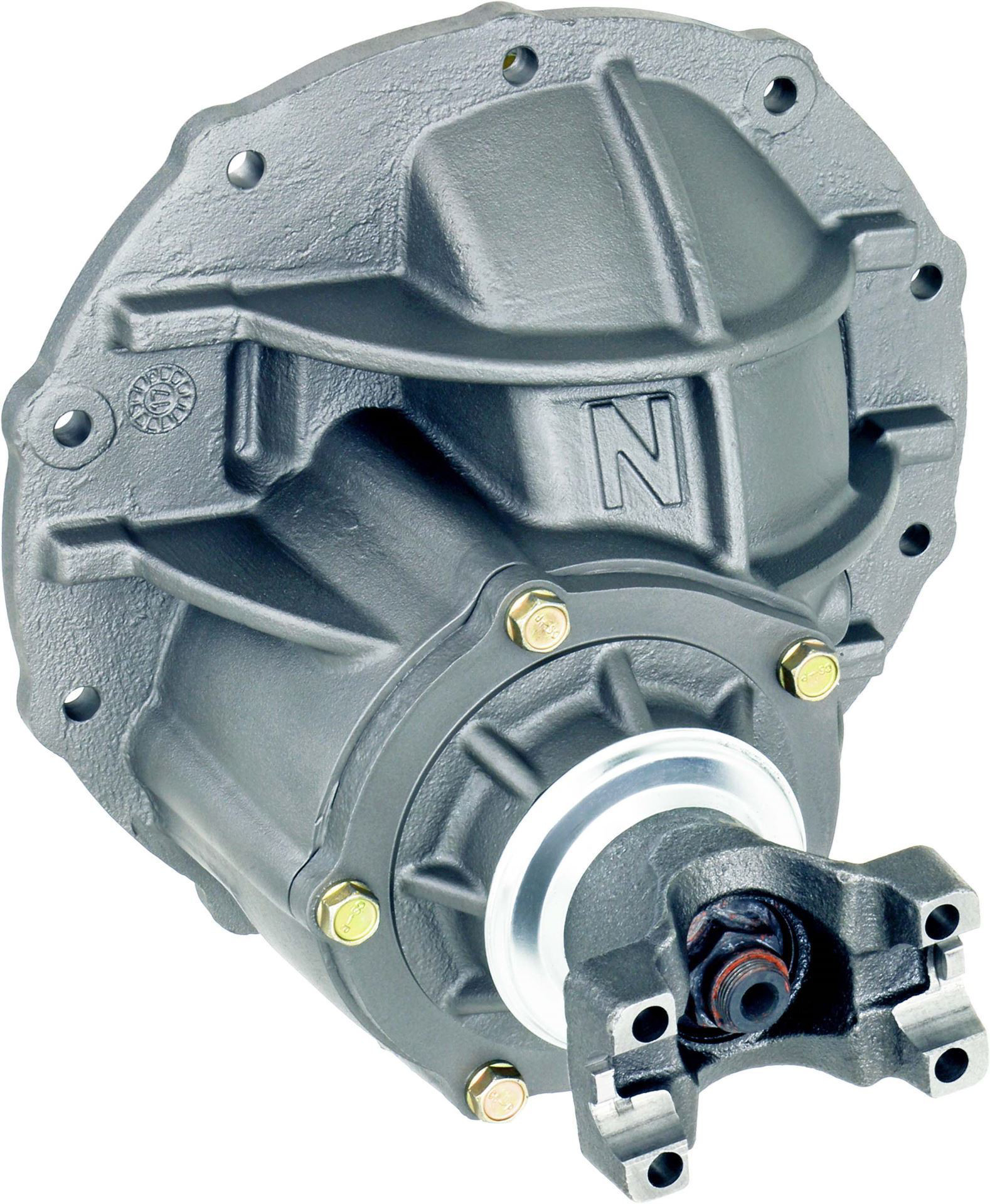

Ford 9-Inch Third Member Assembly (28-Spline)

Product Files

New, built-to-order Currie 9-inch nodular iron third member set up for 28-spline axles. Options include a choice of differential type, gear ratio, and pinion yoke.


Features:

  • Currie Sportsman Nodular Iron Case with 3.062 Bore
  • Currie Nodular Iron Big Bearing (Daytona) Pinion Support
  • Choice of Gear Ratio, Carrier and Pinion Yoke
  • Setup and Assembled by Skilled Professionals

*** SELECT OPTIONS TO BUILD AND PRICE ***

SKU: 28-Spline
*
Please select
 ▼
Please select
Sportsman Case - Loaded [+$371.00]
*
Please select
 ▼
Please select
Currie Iron Big Bearing Pinion Support [+$250.00]
*
Please select
 ▼
Please select
3.00 Gears [+$240.00]
3.25 Gears [+$240.00]
3.50 Gears [+$240.00]
3.50 Gears Polished [+$390.00]
3.70 Gears [+$240.00]
3.70 Gears Polished [+$390.00]
3.89 Gears [+$240.00]
3.89 Gears Polished [+$390.00]
4.11 Gears [+$240.00]
4.11 Gears Polished [+$390.00]
4.30 Gears [+$240.00]
4.57 Gears [+$240.00]
4.86 Gears [+$240.00]
5.14 Gears [+$240.00]
5.29 Gears [+$240.00]
*
Please select
 ▼
Please select
Open Diff [+$400.00]
Eaton Truetrac [+$724.00]
*
Please select
 ▼
Please select
1350 Nodular Iron Yoke [+$139.00]
1350 Chromoly Yoke [+$208.00]
*
Please select
 ▼
Please select
No Thank You
Currie Gear Oil & Install Kit [+$65.00]
$1,400.00

A complete Currie 9-inch third member makes it easy to update your street rod, muscle car, or truck with a new gear ratio or performance differential. All Currie built-to-order third members feature a new gear case, bearings, seals, solid pinion bearing spacer, Daytona pinion support, with a choice of gear ratio, pinion yoke, and differential type.





Currie 9-inch Third Member Features

Sportsman gear case   Gear Case - New Currie Sportsman 9-inch nodular iron gear case with 3.062 bore carrier bearings that are compatible with 28 or 31-spline axles

Nodular pinion support   Pinion Support - New nodular iron big bearing pinion support

Nodular 1330 Yoke   Pinion Yoke - Choice of 1310 or 1350 Series short nodular iron pinion yokes

Master Bearing Kit   Master Bearing kit - New Timken master bearing kit with seals and solid pinion spacer

Labor

Labor - Fully assembled and set up in-house by skilled professionals



9-inch Third Member Options

9-inch ring and pinion   Gear Ratios - Select from a wide range of ratios. Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets

Trac Lock Posi   Differential Options - Selection of 28-spline standard open differential or Eaton Truetrac Posi





NOTES:

Lubrication Requirements - 9-inch rearends use a high-offset hypoid gear design that requires a severe duty 85w-140 gear oil with API GL-6 rating. Use of oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty

A complete Currie 9-inch third member makes it easy to update your street rod, muscle car, or truck with a new gear ratio or performance differential. All Currie built-to-order third members feature a new gear case, bearings, seals, solid pinion bearing spacer, Daytona pinion support, with a choice of gear ratio, pinion yoke, and differential type.





Currie 9-inch Third Member Features

Sportsman gear case   Gear Case - New Currie Sportsman 9-inch nodular iron gear case with 3.062 bore carrier bearings that are compatible with 28 or 31-spline axles

Nodular pinion support   Pinion Support - New nodular iron big bearing pinion support

Nodular 1330 Yoke   Pinion Yoke - Choice of 1310 or 1350 Series short nodular iron pinion yokes

Master Bearing Kit   Master Bearing kit - New Timken master bearing kit with seals and solid pinion spacer

Labor

Labor - Fully assembled and set up in-house by skilled professionals



9-inch Third Member Options

9-inch ring and pinion   Gear Ratios - Select from a wide range of ratios. Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets

Trac Lock Posi   Differential Options - Selection of 28-spline standard open differential or Eaton Truetrac Posi





NOTES:

Lubrication Requirements - 9-inch rearends use a high-offset hypoid gear design that requires a severe duty 85w-140 gear oil with API GL-6 rating. Use of oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty
