Included In Price:

  • Currie Centurion 9-Inch Notchback Housing ForA-body Vehicles
  • Currie Johnny Joint® Rod Ends Installed In Upper Mounts
  • Currie Performance 31-Spline Axles With Wheel Studs
  • Timken Axle Bearings (shipped loose)
SKU: CE-GMA6466X
Estimated Lead Time: 4 to 6 weeks
*
*
*
$1,432.95

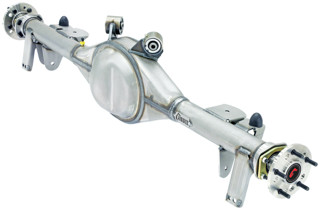

Currie 9-inch Housing And Axle Packages for 1964 thru 1966 Chevelle, El Camino, Malibu, Cutlass, Skylark, GTO, 442, Gran Sport, Tempest, and other A-body vehicles, are built to match the vehicles stock axle width, pinion offset, suspension mounting locations and wheel bolt pattern - for a straightforward hassle-free installation

Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rearend. Requires assembly of components prior to installation



Included Standard Features

Centurion Housing   Currie Centurion Housing - Classic notchback looks in a new, high-strength, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat, leak-free seal - all joined together with strong, attractive welds

Johnny Joint Upper Control Arm Mounts   Currie Johnny Joints - Installed in the upper control arm mounts reduce suspension deflection while freeing up axle articulation for smooth, predictable performance - without the noise, vibration and harness of heim joints

Suspension Brackets   Suspension Brackets - Coil spring pads and control arm mounts are installed in the OEM locations for a direct bolt-in fit

Billet Housing Ends   Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Performance Axles   Alloy Axles - Currie Performance 31-spline 1541 alloy axles, feature vehicle correct bolt pattern and wheel studs - Timken axle bearings shipped loose

Bearing Retainers   Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life





Options To Complete The Build

Optional Fill Cap   Fill Cap - Make those oil changes easy with the optional high mounted aluminum fill cap

Optional Drain Plug   Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change

Optional Powder Coat   Powder Coat - Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rearend looking its best



Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



NOTES:

1967 Chevelle - 64-66 Chevelles had a flat style spring pad on the housing which was used up to early 67. This housing may be used in your 67, but you must first check the spring pad type to make sure it is the right one for your vehicle

Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose and must be pressed on to the axles prior to final assembly

Third Member - Currie housing and axle package require a standard Ford 9-inch third member set up for 31-spline axles

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie crate rearends use a standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling:  12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Currie 9-inch Housing And Axle Packages for 1964 thru 1966 Chevelle, El Camino, Malibu, Cutlass, Skylark, GTO, 442, Gran Sport, Tempest, and other A-body vehicles, are built to match the vehicles stock axle width, pinion offset, suspension mounting locations and wheel bolt pattern - for a straightforward hassle-free installation

Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rearend. Requires assembly of components prior to installation



Included Standard Features

Centurion Housing   Currie Centurion Housing - Classic notchback looks in a new, high-strength, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat, leak-free seal - all joined together with strong, attractive welds

Johnny Joint Upper Control Arm Mounts   Currie Johnny Joints - Installed in the upper control arm mounts reduce suspension deflection while freeing up axle articulation for smooth, predictable performance - without the noise, vibration and harness of heim joints

Suspension Brackets   Suspension Brackets - Coil spring pads and control arm mounts are installed in the OEM locations for a direct bolt-in fit

Billet Housing Ends   Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Performance Axles   Alloy Axles - Currie Performance 31-spline 1541 alloy axles, feature vehicle correct bolt pattern and wheel studs - Timken axle bearings shipped loose

Bearing Retainers   Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life





Options To Complete The Build

Optional Fill Cap   Fill Cap - Make those oil changes easy with the optional high mounted aluminum fill cap

Optional Drain Plug   Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change

Optional Powder Coat   Powder Coat - Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rearend looking its best



Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build the custom solution that meets your needs



NOTES:

1967 Chevelle - 64-66 Chevelles had a flat style spring pad on the housing which was used up to early 67. This housing may be used in your 67, but you must first check the spring pad type to make sure it is the right one for your vehicle

Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose and must be pressed on to the axles prior to final assembly

Third Member - Currie housing and axle package require a standard Ford 9-inch third member set up for 31-spline axles

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie crate rearends use a standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling:  12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Products specifications
Vehicle Fitment 64-66 GM A-Body Vehicles (Chevelle, El Camino, Malibu, Monte Carlo, Cutlass, 442, Vista Cruiser, Skylark, Grand Sport, LeMans, GTO, Grand Prix, Tempest, Sprint)
Housing Currie Centurion heavy-duty 9-inch housing with 3-inch diameter x .188 wall DOM tube
Axles Currrie Performance 1541, 31 spline axles
Housing Ends Billet Torino style late model large bearing
Axle Bearings Set 20 Tapered roller bearing
Bearing Retainers .250 thick heavy-duty plates, finished in gold zinc plating
Control Arm Mounts Johnny Joints installed with ½” greasable bolt
Suspension Brackets Matched to OEM fitment and locations
Wheel Bolt Pattern 5 on 4 3/4" with 7/16" studs installed
Brake Space 2.5 inches (axle standoff)
Width 60 inches (between wheel mounting surfaces)
Fluid Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
