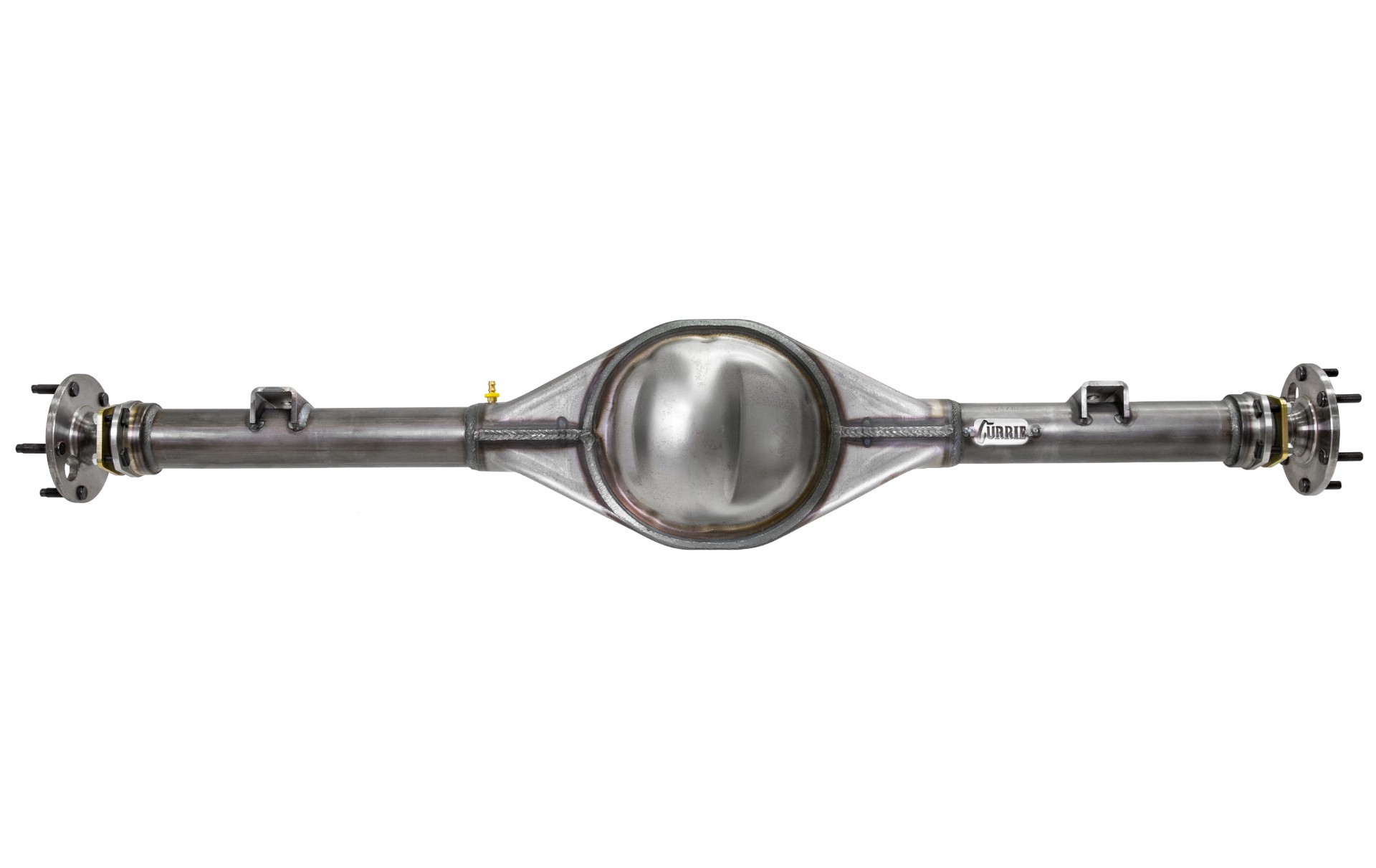

55-59 Chevy 3100 9-Inch Housing And Axle Package

Currie 9-inch Housing and Axle Packages for 1955 thru 1959 Chevy 2WD pickups are built to match the vehicle's stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern - for a straightforward, hassle-free installation

Housing and Axle Packages require a 9-inch third-member assembly and compatible brake package to complete the rear-end. Requires assembly of components before installation

Included Standard Features

		Currie Centurion Housing - Classic notchback looks in a new, high-strength, American-made housing that features 3-inch diameter axle tubes and CNC machined face flange for a flat leak-free seal - all joined together with strong attractive welds
		Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles, and the third member for a simple oil change
		Spring Pads - Heavy-duty 1/4-inch thick spring pad mounts are installed in the OEM locations for bolt-in compatibility with the stock leaf spring suspension
		Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals
		Alloy Axles - Currie Performance 31-spline 1541 alloy axles, feature vehicle correct bolt pattern and wheel studs - Tapered axle bearings shipped loose
		Bearing Retainers - Heavy-duty retainers assure positive bearing retention and full seal engagement for long trouble and leak-free service life

NOTES:

Third Member - Currie housing and axle package requires a standard Ford 9-inch third member set up for 31-spline axles

Brake Lines - Hard brake lines are not included with Housing and Axle Packages. Currie offers universal hard brake line kits that fit a broad range of applications

Aftermarket Brakes - Currie rear-ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to be easily changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big bearing Ford housing ends and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie rear-ends use standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition
