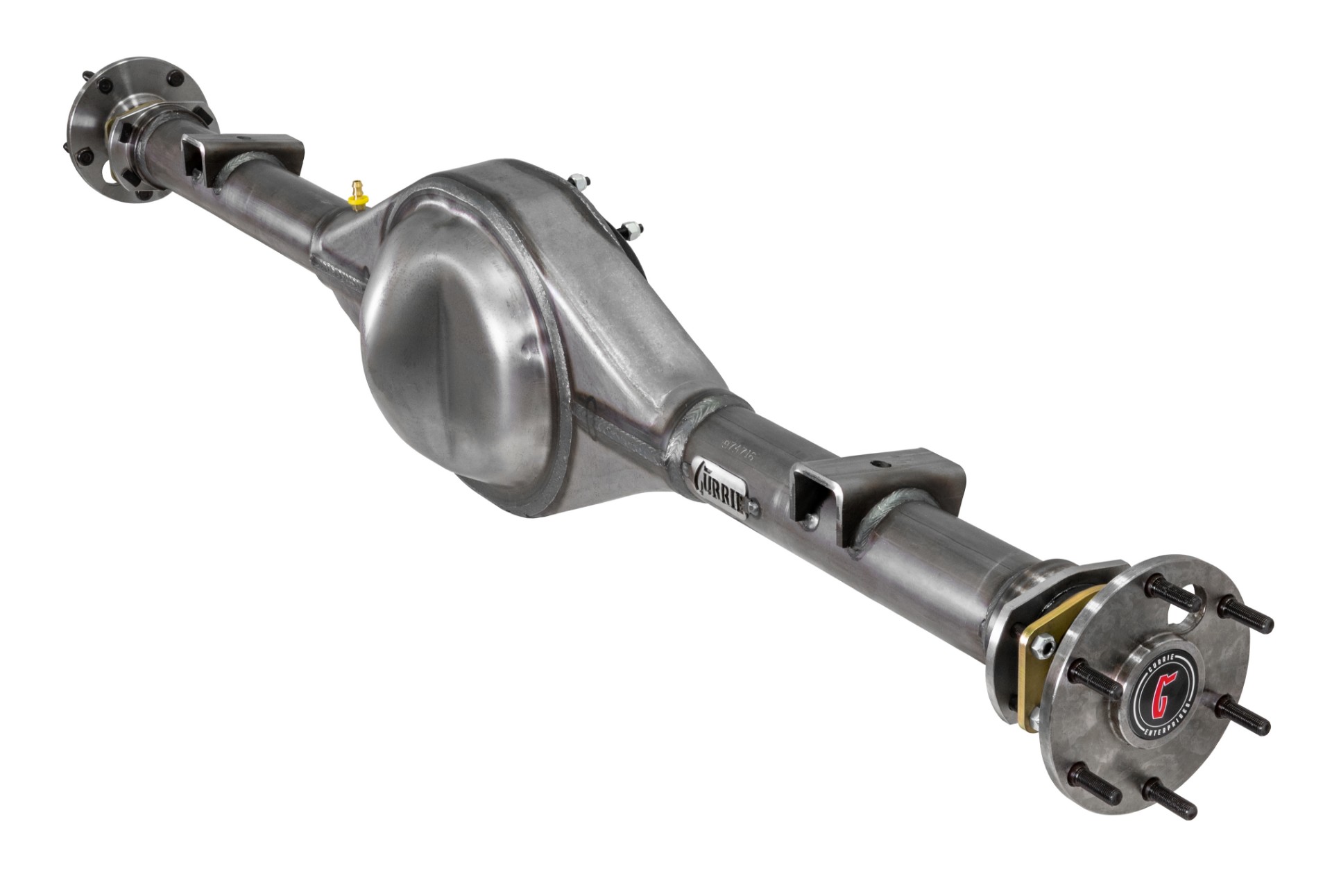

55-59 Chevy 3100 9-Inch Rear End Builder


Currie® 9-inch Rear End Builder for 1955 thru 1959 Chevy 3100 2WD pickups. Select from a broad range of options, from kit components to complete, highly optioned, ready-to-bolt-in assemblies.



*** SELECT OPTIONS TO BUILD AND PRICE ***

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
$1,650.00


Select from a broad range of options and upgrades to configure the perfect rear end for your build.



Rear End Components – Some Assembly Required

(Component options are shipped separately via UPS ground for ease of handling)

Housing and Axle Package

  • Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
  • Suspension Brackets Installed in the Factory Locations
  • Currie Forged 31-Spline Axles with Access Hole and Tapered Bearings Installed
  • 5 on 4 3/4 or 6 on 5.5 Wheel Bolt Pattern
  • Fully Welded with Raw Finish, Ready for Paint
  • Built to Factory Width

Third Member Options

  • Complete Third Member, 100% New Components Featuring Popular Gear Ratios
  • Currie High-Strength Nodular Iron Case with Daytona Pinion Support
  • Currie 31-Spline TwinTrac Helical Gear Limited Slip Differential
  • Upgraded 1350 Nodular Iron Pinion Yoke
  • Setup and Assembled by Skilled Professionals

Brake Options

  • Choice of Popular Disc Brake Kits with Internal Parking brakes



Fully Assembled Rear End – More Options

(Shipped on a pallet with a cover box via truck freight; a Forklift is recommended)

  • Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
  • Suspension Brackets Installed in the Factory Locations
  • 5 on 4 3/4 or 6 on 5.5 Wheel Bolt Pattern with Choice of Wheel Studs Installed
  • Currie Forged 31 or 35-Spline Axles with Access Holes and Tapered Bearings Installed
  • Choice of Raw, Satin Black, or Gloss Black Powder Coat Finish
  • Choice of Nodular Iron or Aluminum Gear Case
  • Choice of Differential Type
  • Choice of Gear Ratio
  • Choice of Brake Package
  • Built to Factory Width
  • Professionally Setup and Shipped Fully-Assembled





Product Features:



Currie Centurion Housing

Classic notchback looks in a new, high-strength housing that features 3-inch diameter axle tubes and CNC machined face flange for a flat, leak-free seal - all joined together with strong, attractive welds

Drain Plug

This standard feature makes routine maintenance so much easier - no more removing the brakes, axles, and the third member and scooping out dirty gear oil for a simple oil change

Gear Case

A choice of nodular iron or aluminum gear case with Daytona big bearing pinion support is the perfect foundation for a performance restomod build - no used or reconditioned parts here!

Master Bearing Kit

High-quality Timken or Koyo bearings and performance seals are used throughout to provide a long, trouble-free service life

Gear Ratio

Select from a wide variety of ratios, Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets in our 9-inch crate rear ends

Differential

Select the differential type that meets your traction needs, including helical gear limited-slip, automatic locking differential, or steel spool

Spring Pads

Heavy-duty 1/4-inch thick spring pad mounts are installed in the stock locations for bolt-in compatibility with the stock leaf spring suspension

Billet Housing Ends

Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Alloy Axles

Currie Performance 31-spline or 35-spline 1541 alloy axles with tapered axle bearings feature vehicle correct bolt pattern and wheel studs

Brake Package

Select from a range of brake options from classic 11-inch drums to 14-inch Baer and Wilwood disk brakes that are capable of meeting any performance requirement

Powder Coat

Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rear end looking its best

Fully Assembled

Complete rear ends and third members are fully assembled in-house by our skilled professionals and shipped ready to install





NOTES:

Lubrication Requirements - 9-inch rear-ends use a high-offset hypoid gear design requiring severe duty gear oil with API GL-6 rating. Oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty. See Currie Racing Gear Oil P/N CE-9013 or CE-9015

Brake Lines - Rear-ends equipped with a brake package will include flex lines installed (rubber for Explore brakes,  braided stainless for Wilwood and Bear brakes). Hard Brake lines are not included

Aftermarket Brakes - Currie crate rear ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to be easily changed or upgraded without modifying the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big-bearing Ford housing ends and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie rear ends use standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Select from a broad range of options and upgrades to configure the perfect rear end for your build.



Rear End Components – Some Assembly Required

(Component options are shipped separately via UPS ground for ease of handling)

Housing and Axle Package

  • Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
  • Suspension Brackets Installed in the Factory Locations
  • Currie Forged 31-Spline Axles with Access Hole and Tapered Bearings Installed
  • 5 on 4 3/4 or 6 on 5.5 Wheel Bolt Pattern
  • Fully Welded with Raw Finish, Ready for Paint
  • Built to Factory Width

Third Member Options

  • Complete Third Member, 100% New Components Featuring Popular Gear Ratios
  • Currie High-Strength Nodular Iron Case with Daytona Pinion Support
  • Currie 31-Spline TwinTrac Helical Gear Limited Slip Differential
  • Upgraded 1350 Nodular Iron Pinion Yoke
  • Setup and Assembled by Skilled Professionals

Brake Options

  • Choice of Popular Disc Brake Kits with Internal Parking brakes



Fully Assembled Rear End – More Options

(Shipped on a pallet with a cover box via truck freight; a Forklift is recommended)

  • Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
  • Suspension Brackets Installed in the Factory Locations
  • 5 on 4 3/4 or 6 on 5.5 Wheel Bolt Pattern with Choice of Wheel Studs Installed
  • Currie Forged 31 or 35-Spline Axles with Access Holes and Tapered Bearings Installed
  • Choice of Raw, Satin Black, or Gloss Black Powder Coat Finish
  • Choice of Nodular Iron or Aluminum Gear Case
  • Choice of Differential Type
  • Choice of Gear Ratio
  • Choice of Brake Package
  • Built to Factory Width
  • Professionally Setup and Shipped Fully-Assembled





Product Features:



Currie Centurion Housing

Classic notchback looks in a new, high-strength housing that features 3-inch diameter axle tubes and CNC machined face flange for a flat, leak-free seal - all joined together with strong, attractive welds

Drain Plug

This standard feature makes routine maintenance so much easier - no more removing the brakes, axles, and the third member and scooping out dirty gear oil for a simple oil change

Gear Case

A choice of nodular iron or aluminum gear case with Daytona big bearing pinion support is the perfect foundation for a performance restomod build - no used or reconditioned parts here!

Master Bearing Kit

High-quality Timken or Koyo bearings and performance seals are used throughout to provide a long, trouble-free service life

Gear Ratio

Select from a wide variety of ratios, Currie uses only the highest quality Motive Gear Performance® series (Orange box) ring and pinion sets in our 9-inch crate rear ends

Differential

Select the differential type that meets your traction needs, including helical gear limited-slip, automatic locking differential, or steel spool

Spring Pads

Heavy-duty 1/4-inch thick spring pad mounts are installed in the stock locations for bolt-in compatibility with the stock leaf spring suspension

Billet Housing Ends

Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Alloy Axles

Currie Performance 31-spline or 35-spline 1541 alloy axles with tapered axle bearings feature vehicle correct bolt pattern and wheel studs

Brake Package

Select from a range of brake options from classic 11-inch drums to 14-inch Baer and Wilwood disk brakes that are capable of meeting any performance requirement

Powder Coat

Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rear end looking its best

Fully Assembled

Complete rear ends and third members are fully assembled in-house by our skilled professionals and shipped ready to install





NOTES:

Lubrication Requirements - 9-inch rear-ends use a high-offset hypoid gear design requiring severe duty gear oil with API GL-6 rating. Oil not meeting the GL-6 rating will damage the gears and bearings and void the Currie Warranty. See Currie Racing Gear Oil P/N CE-9013 or CE-9015

Brake Lines - Rear-ends equipped with a brake package will include flex lines installed (rubber for Explore brakes,  braided stainless for Wilwood and Bear brakes). Hard Brake lines are not included

Aftermarket Brakes - Currie crate rear ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to be easily changed or upgraded without modifying the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big-bearing Ford housing ends and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie rear ends use standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Products specifications
Vehicle Fitment 55-59 Chevy 3100 2WD pickups
Housing Currie Centurion heavy-duty 9-inch housing with 3-inch diameter x .188 wall DOM tube
Center Section Currie Sportsman nodular iron case with Daytona style big bearing pinion support
Pinion Yoke 1350 nodular iron yoke
Axles Currie Performance 1541 alloy 31-spline axles
Housing Ends Billet Torino style late model large bearing
Axle Bearings Set 20 Tapered roller bearing
Bearing Retainers 1/4" thick heavy duty plates, finished in gold zinc plating
Suspension Brackets Heavy duty 2 inch springs pads matched to OEM fitment and locations
Wheel Bolt Pattern 6 on 5.5 inch with 1/2 in. studs installed
Brake Space 2.5 inches (axle standoff)
Width 62 inches (between wheel mounting surfaces)
Oil Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
