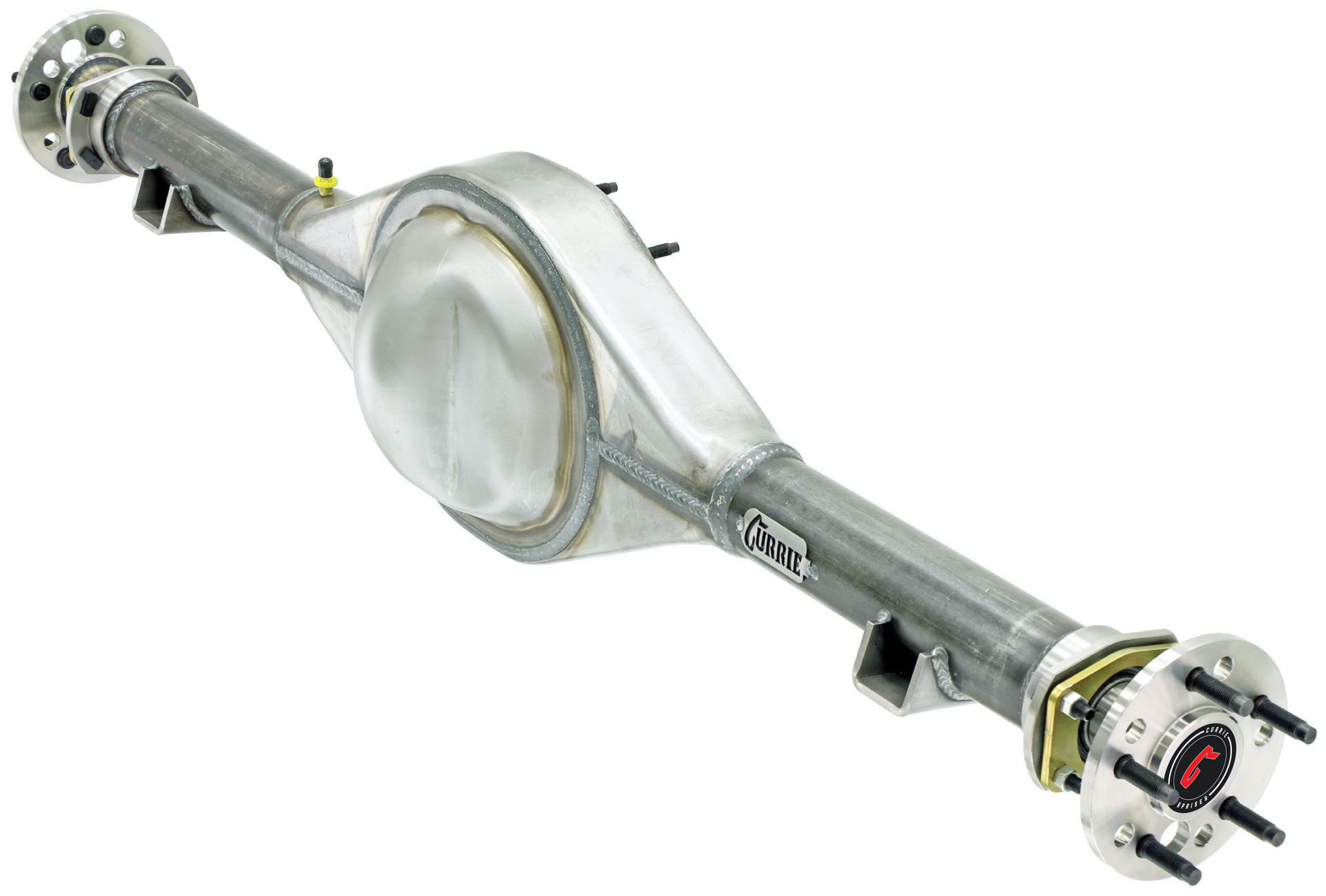

Currie 9-inch Housing and Axle Packages for 1964 thru 1966 Mustangs are built to match the vehicles stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern for a straightforward, hassle-free installation
Housing and Axle Packages require a 9-inch third-member assembly and compatible brake package to complete the rear-end. Requires assembly of components before installation
Included Standard Features
 |
|
Currie Centurion Housing - Classic notchback looks in a new, high-strength, American-made housing that features 3-inch diameter axle tubes and CNC machined face flange for a flat, leak-free seal - all joined together with strong, attractive welds |
| |
|
|
 |
|
Spring Pads - Heavy-duty spring pad mounts are installed in the OEM locations for bolt-in compatibility with the stock leaf spring suspension |
| |
|
|
 |
|
Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals |
| |
|
|
 |
|
Alloy Axles - Currie Performance 31-spline 1541 alloy axles are drilled to match the OE bolt pattern and stud size - with tapered axle bearings |
| |
|
|
 |
|
Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long, trouble and leak-free services life |
NOTES:
Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose and must be pressed onto the axles before final assembly
Aftermarket Brakes - Currie crate rear-ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to easily be changed or upgraded without modifying the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big-bearing Ford housing ends and a 2.80 center hole in the drum or rotor.
Wheel Studs - Currie crate rear-ends use standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition
