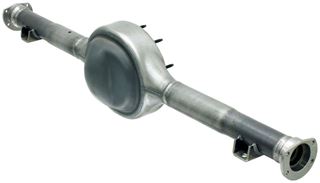

67-70 Mustang 9-inch Replica Housing


Currie 9-inch Replica Housing for the 1967 thru 1970 Mustang and Cougar


Included In Base Price:

  • Currie 9-inch Replica Notchback Housing with Swaged Axle Tubes
  • Replica Leaf Spring Pads Installed at OE locations
  • Billet Small Bearing Housing Ends Accept the Stock Axles and Brakes
  • Factory Width

Options:

  • Choice of 28 or 31-Spline Axle Package
  • Includes Axles, Bearings, Retainers, Seals, and 1/2 In. Wheel Studs

SKU: CE-2000LM
*
$1,050.00

For the aficionado who wants the best, our 1967-1970 Mustang and Cougar, a Currie 9-inch replica housings should interest you! This 100% new 9-inch housing features our notchback center and axle tubes that are swedged from 3 down to 2 3/4 inches with small bearing housing ends installed (just like the original), replica leaf spring pads, and even the vent hole are mounted in the OE locations

Currie Ford 9-inch replica housings are a direct bolt-in replacement for 1967-1970 Mustang and Cougar factory 8-inch or 9-inch housings and will accept the original 9-inch 28-spline third member, axles and wheel bearings as well as the OE brake components. If upgrading from an 8-inch rearend (typically the case), a new 9-inch 28-spline third member will be required to complete the installation



Included Standard Features

67-70 Notch Back Replica   Currie Notchback Housing – 100% new, 9-inch heavy-duty notchback replica housing, built to match the original factory housing in every detail - except the ugly factory welds

EOM Vent Location   Vent Location - Even the vent location and tread size are to factory specification

Swedged Axle Tubes   Swaged Axle Tubes - Replica swaged axle tubes made from strong .188 wall DOM tube eliminate the bending issues associated with the OE rearends. The tubes are swaged from 3-inches down to 2.750-inches to keep that classic appearance

Replica Spring Pads   Spring Pads - Replica heavy-duty spring pads are located at the stock position, for a direct bolt-in fit

Billet Housing Ends   Housing Ends - Billet small bearing housing ends accept the stock axles, retainers, and brake hardware

For the aficionado who wants the best, our 1967-1970 Mustang and Cougar, a Currie 9-inch replica housings should interest you! This 100% new 9-inch housing features our notchback center and axle tubes that are swedged from 3 down to 2 3/4 inches with small bearing housing ends installed (just like the original), replica leaf spring pads, and even the vent hole are mounted in the OE locations

Currie Ford 9-inch replica housings are a direct bolt-in replacement for 1967-1970 Mustang and Cougar factory 8-inch or 9-inch housings and will accept the original 9-inch 28-spline third member, axles and wheel bearings as well as the OE brake components. If upgrading from an 8-inch rearend (typically the case), a new 9-inch 28-spline third member will be required to complete the installation



Included Standard Features

67-70 Notch Back Replica   Currie Notchback Housing – 100% new, 9-inch heavy-duty notchback replica housing, built to match the original factory housing in every detail - except the ugly factory welds

EOM Vent Location   Vent Location - Even the vent location and tread size are to factory specification

Swedged Axle Tubes   Swaged Axle Tubes - Replica swaged axle tubes made from strong .188 wall DOM tube eliminate the bending issues associated with the OE rearends. The tubes are swaged from 3-inches down to 2.750-inches to keep that classic appearance

Replica Spring Pads   Spring Pads - Replica heavy-duty spring pads are located at the stock position, for a direct bolt-in fit

Billet Housing Ends   Housing Ends - Billet small bearing housing ends accept the stock axles, retainers, and brake hardware
Products specifications
Vehicle Fitment 1967 thru 1970 Mustang: All Models
Housing Currie 9-inch notchback replica housing with 3-inch x .188 wall DOM tube swaged to 2.750-inch
Housing Ends Billet small bearing housing ends
Suspension Brackets Heavy-duty replica leaf spring pads installed in the OE location
Width 59.375 inches (between wheel mounting surfaces)
Oil Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
