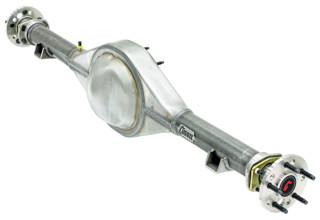

9-inch Housing and Axle package for 1971-1973 Ford Mustang


Included In Base Price:

  • Currie Centurion Notchback Housing
  • 31-Spline Currie Performance Axles
  • Timken Axle Bearings (Shipped Loose)
SKU: CE-FDM7173X
Estimated Lead Time: 3-5 days
*
*
*
$1,255.00
PROP 65 WARNING:

Currie 9-inch Housing and Axle Packages for 1971 thru 1973 Mustang, are built to match the vehicles stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern - for a straightforward hassle-free installation


Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rearend. Requires assembly of components prior to installation



Included Standard Features

Centurion Housing   Currie Centurion Housing - Classic notchback looks in a new,  high-strength, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat leak-free seal - all joined together with strong, attractive welds

Spring Pads   Spring Pads - Heavy-duty 1/4-inch thick spring pad mounts are installed in the OEM locations for bolt-in compatibility with the stock leaf spring suspension

Billet Housing Ends   Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Performance Axles   Alloy Axles - Currie Performance 31-spline 1541 alloy axles are drilled to match the OE bolt pattern and stud size - Timken axle bearings shipped loose, so brake specific components can be installed as required

Bearing Retainers   Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak free services life





Options To Complete The Build

Fill Cap   Fill Cap - Make those oil changes easy with the optional high mounted billet aluminum fill cap

Drain Plug   Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change

Powder Coat   Powder Coat - Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rearend looking its best





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build a custom solution that meets your needs



NOTES:

Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose and must be pressed on to the axles prior to final assembly

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie crate rearends use a standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Currie 9-inch Housing and Axle Packages for 1971 thru 1973 Mustang, are built to match the vehicles stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern - for a straightforward hassle-free installation


Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rearend. Requires assembly of components prior to installation



Included Standard Features

Centurion Housing   Currie Centurion Housing - Classic notchback looks in a new,  high-strength, American-made housing, that features 3-inch diameter axle tubes, and CNC machined face flange, for a flat leak-free seal - all joined together with strong, attractive welds

Spring Pads   Spring Pads - Heavy-duty 1/4-inch thick spring pad mounts are installed in the OEM locations for bolt-in compatibility with the stock leaf spring suspension

Billet Housing Ends   Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals

Performance Axles   Alloy Axles - Currie Performance 31-spline 1541 alloy axles are drilled to match the OE bolt pattern and stud size - Timken axle bearings shipped loose, so brake specific components can be installed as required

Bearing Retainers   Bearing Retainers - Full-circle heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak free services life





Options To Complete The Build

Fill Cap   Fill Cap - Make those oil changes easy with the optional high mounted billet aluminum fill cap

Drain Plug   Drain Plug - This simple option makes changing the oil so much easier - no more removing the brakes, axles and the third member for a simple oil change

Powder Coat   Powder Coat - Optional powder coat finish adds long-lasting protection against rust and corrosion to keep your rearend looking its best





Looking for something different? Click on Live Chat or call (714) 528-6957 to speak with an expert to build a custom solution that meets your needs



NOTES:

Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose and must be pressed on to the axles prior to final assembly

Aftermarket Brakes - Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard, to easily be changed or upgraded without having to modify the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big bearing Ford housing ends, and a 2.80 center hole in the drum or rotor

Wheel Studs - Currie crate rearends use a standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition

Products specifications
Vehicle Fitment 1971 thru 1973 Mustang: All models
Housing Currie Centurion heavy-duty 9-inch housing with 3-inch diameter x .188 wall DOM tube
Axles Currie Performance 1541, 31-spline axles
Housing Ends Billet Torino style late model large bearing
Axle Bearings Set 20 Tapered roller bearing
Bearing Retainers 1/4" thick heavy duty plates, gold zinc plated
Suspension Brackets Heavy duty 2 1/4” wide leaf spring pads are installed in the stock location
Wheel Bolt Pattern 5 on 4 1/2" with 1/2" studs installed
Brake Space 2.5 inch axle standoff
Width 60.875 inches (between wheel mounting surfaces)
Fluid Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
Products specifications
Vehicle Fitment 1971 thru 1973 Mustang: All models
Housing Currie Centurion heavy-duty 9-inch housing with 3-inch diameter x .188 wall DOM tube
Axles Currie Performance 1541, 31-spline axles
Housing Ends Billet Torino style late model large bearing
Axle Bearings Set 20 Tapered roller bearing
Bearing Retainers 1/4" thick heavy duty plates, gold zinc plated
Suspension Brackets Heavy duty 2 1/4” wide leaf spring pads are installed in the stock location
Wheel Bolt Pattern 5 on 4 1/2" with 1/2" studs installed
Brake Space 2.5 inch axle standoff
Width 60.875 inches (between wheel mounting surfaces)
Fluid Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
