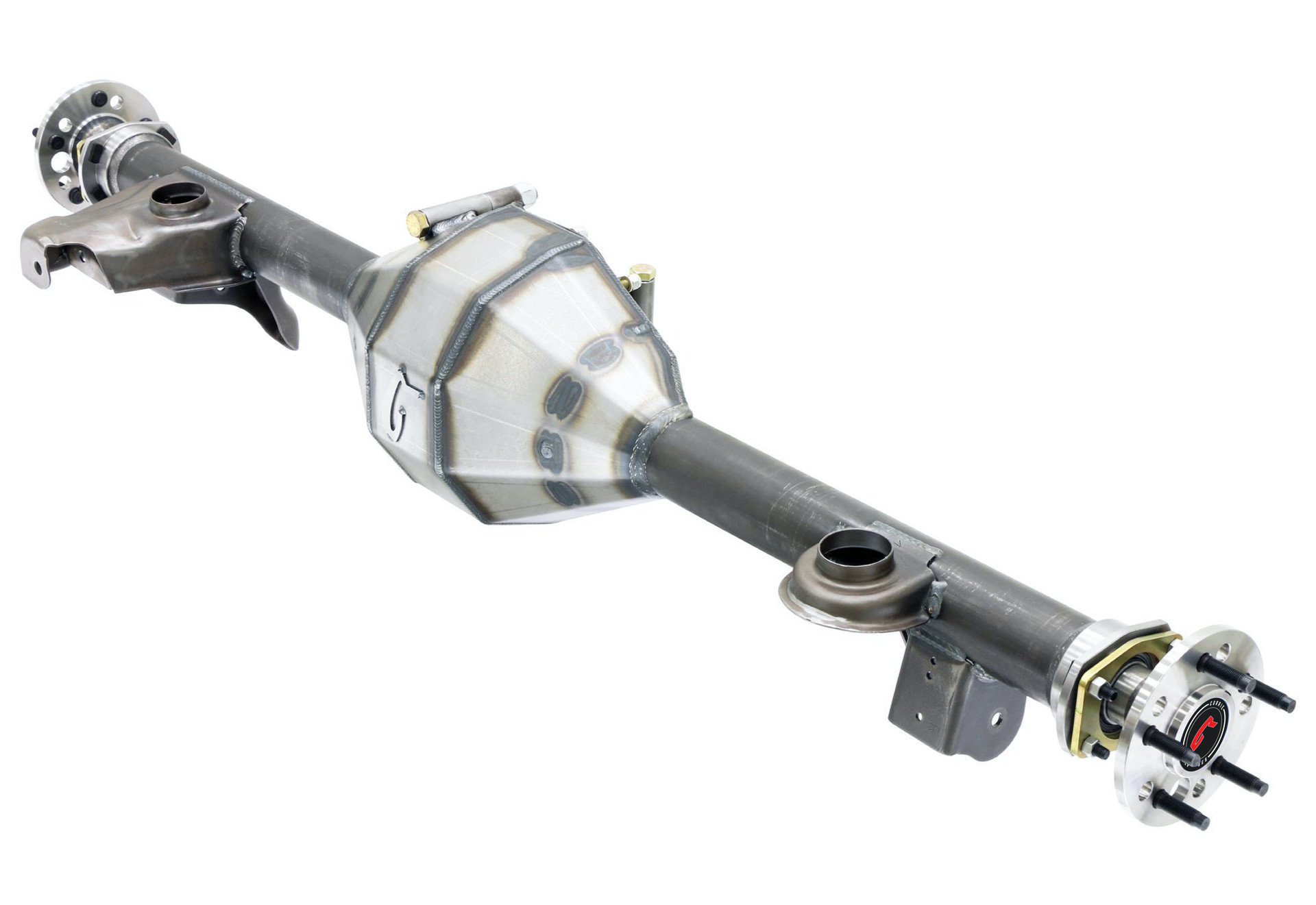

Currie Turn 9 Fabricated Chromoly Housing and Axle Package for 1982 thru 1992 Camaro/Firebird with torque arm and coil spring suspension are complete, ready-to-bolt-in assemblies that are built to match the vehicle's stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern for a straightforward hassle-free installation
Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rear-end. Requires assembly of components before installation
Included Standard Features
 |
|
Currie Turn 9 - American-made housing features a high-strength fabricated center section with internal tube gussets and CNC machined face flange, with 3-inch diameter axle tubes - all joined with strong, attractive welds to deliver superior strength and durability |
| |
|
|
 |
|
Torque Arm Mount - Heavy-duty fabricated torque arm mount provides OEM fitment for compatibility with stock or aftermarket torque arms |
| |
|
|
 |
|
Suspension Brackets - Heavy-duty laser cut suspension brackets are installed on the housing to match the stock OE locations and fitment for a direct bolt-in fit |
| |
|
|
 |
|
Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals |
| |
|
|
 |
|
Alloy Axles - Currie Performance 31-spline 1541 alloy axles, feature vehicle correct bolt pattern and wheel studs - Tapered axle bearings shipped loose |
| |
|
|
 |
|
Bearing Retainers - Heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life |
NOTES:
Axle Bearings - Due to the many brake options and associated variations in bearing retainers available, the axle bearings are shipped loose. They must be pressed onto the axles before final assembly.
Aftermarket Brakes - Currie crate rear-ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to easily be changed or upgraded without modifying the housing or axles. ABCS brakes use a 2.5” brake space with late-model big bearing Ford housing ends and a 2.80 center hole in the drum or rotor.
Wheel Studs - Currie crate rearends use a standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles, without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition
