Specifications
- Factory TJ Width 60.5 in.
- Chromoly Inner/Outer Axle Shafts
- Accepts Stock TJ Outer Assemblies
- Utilizes stronger JK Internals
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
TRUETRAC |
3.73 |
CE-JF4404A37 |
CE-JF4404E37 |
CE-JF4404T37 |
4.11 |
CE-JF4404A41 |
CE-JF4404E41 |
CE-JF4404T41 |
4.56 |
CE-JF4404A45 |
CE-JF4404E45 |
CE-JF4404T45 |
4.88 |
CE-JF4404A48 |
CE-JF4404E48 |
CE-JF4404T48 |
5.13 |
CE-JF4404A51 |
CE-JF4404E51 |
CE-JF4404T51 |
5.38 |
CE-JF4404A53 |
CE-JF4404E53 |
CE-JF4404T53 |
|
|
|
|
|

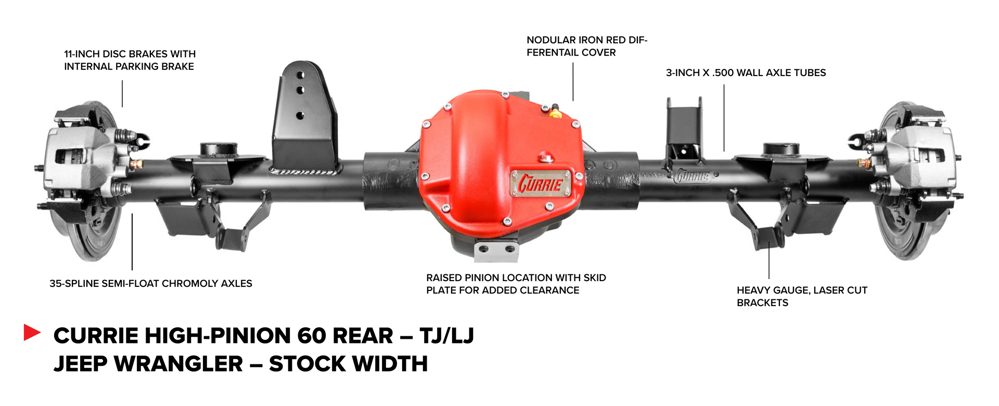

Specifications
- Factory TJ Width 60.5 in
- Currie HP60 Center Section
- 35-Spline Chromoly Axles
- Stock 5 x 4.5 Wheel Bolt Pattern
- 11-Inch Explorer Disc Brakes
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
TRUETRAC |
3.73 |
CE-JR6304A37 |
CE-JR6304E37 |
CE-JR6304T37 |
4.11 |
CE-JR6304A41 |
CE-JR6304E41 |
CE-JR6304T41 |
4.56 |
CE-JR6304A45 |
CE-JR6304E45 |
CE-JR6304T45 |
4.88 |
CE-JR6304A48 |
CE-JR6304E48 |
CE-JR6304T48 |
5.13 |
CE-JR6304A51 |
CE-JR6304E51 |
CE-JR6304T51 |
5.38 |
CE-JR6304A53 |
CE-JR6304E53 |
CE-JR6304T53 |
|
|
|
|
|
Specifications
- Factory JK Width 65.375 in
- Currie HD60 Center Section
- 35-Spline Inner/32-Spline Outer Chromoly Axle Shafts
- Accepts Stock JK Outer Assemblies
- Requires High Clearance Tie Rod
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-KF6400A45 |
CE-KF6400E45 |
|
4.88 |
CE-KF6400A48 |
CE-KF6400E48 |
|
5.13 |
CE-KF6400A51 |
CE-KF6400E51 |
|
5.38 |
CE-KF6400A53 |
CE-KF6400E53 |
|
|
|
|
|
 |
Specifications
- Factory JK Width 65.375 in
- Currie Low-Pinion 60 Center Section
- 40-Spline Chromoly Axles
- Stock 5 x 5 Wheel Bolt Pattern
- Retains the Factory Brake Assemblies
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-KR6100A45 |
CE-KR6100E45 |
|
4.88 |
CE-KR6100A48 |
CE-KR6100E48 |
|
5.13 |
CE-KR6100A51 |
CE-KR6100E51 |
|
5.38 |
CE-KR6100A53 |
CE-KR6100E53 |
|
|
|
|
|
 |
Specifications
- 70 in. Overall Width (4.625 Over Stock JK)
- Currie Extreme 60 Center Section with Ring Gear Load Bolt
- 8 x 6.5 Wheel Bolt Pattern
- 14 in. Vented Rotors Front and Rear with Jeep JT Calipers
- 35-Spline Inner/Outer Chromoly Front Axle Shafts
- 40-Spline Chromoly Full-Float Rear Axles
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.88 |
CE-KS6503A48 |
CE-KS6503E48 |
|
5.13 |
CE-KS6503A51 |
CE-KS6503E51 |
|
5.38 |
CE-KS6503A53 |
CE-KS6503E53 |
|
|
|
|
|
 |
Specifications
- JL Rubicon Width 68 in. (+1.5 in. Over Non-Rubicon JL Models)
- Currie HD60 Center Section
- 35-Spline Inner/32-Spline Outer Chromoly Axles with 1-Ton 1480 U-Joints
- Accepts Stock JL Outer Assemblies
- Requires High Clearance Tie Rod
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-LF6400A45 |
CE-LF6400E45 |
|
4.88 |
CE-LF6400A48 |
CE-LF6400E48 |
|
5.13 |
CE-LF6400A51 |
CE-LF6400E51 |
|
5.38 |
CE-LF6400A53 |
CE-LF6400E53 |
|
|
|
|
|
 |

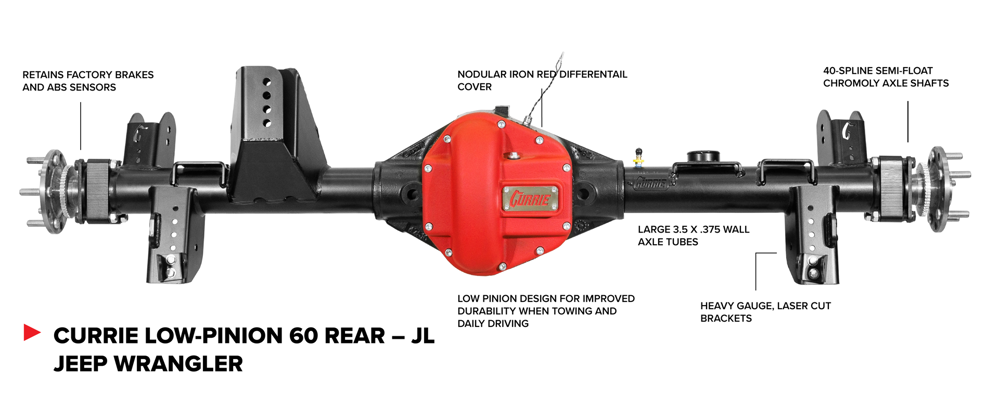

Specifications
- JL Rubicon Width 68 in. (+1.5 in. Over Non-Rubicon JL Models)
- Currie Low-Pinion 60 Center Section
- 40-Spline Chromoly Axles
- Stock 5 x 5 Wheel Bolt Pattern
- Retains the Factory Non-Rubicon Brake Assemblies
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-LSR6100A45 |
CE-LSR6100E45 |
|
4.88 |
CE-LSR6100A48 |
CE-LSR6100E48 |
|
5.13 |
CE-LSR6100A51 |
CE-LSR6100E51 |
|
5.38 |
CE-LSR6100A53 |
CE-LSR6100E53 |
|
|
|
|
|
 |
Specifications
- JL Rubicon Width 68 in.
- Currie Low-Pinion 60 Center Section
- 40-Spline Chromoly Axles
- Stock 5 x 5 Wheel Bolt Pattern
- Retains the Factory Rubicon Brake Assemblies
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
Ratio |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-LR6100A45 |
CE-LR6100E45 |
|
4.88 |
CE-LR6100A48 |
CE-LR6100E48 |
|
5.13 |
CE-LR6100A51 |
CE-LR6100E51 |
|
5.38 |
CE-LR6100A53 |
CE-LR6100E53 |
|
|
|
|
|
|
Specifications
- 70 in. Overall Width (2 in. Over JL Rubicon)
- Currie Extreme 60 Center Section with Ring Gear Load Bolt
- 8 x 6.5 Wheel Bolt Pattern
- 14 in. Vented Rotors Front and Rear with Jeep JT Calipers
- 35-Spline Inner/Outer Chromoly Front Axle Shafts
- 40-Spline Full-Float Rear Axles
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-LS6503A45 |
CE-LS6503E45 |
|
4.88 |
CE-LS6503A48 |
CE-LS6503E48 |
|
5.13 |
CE-LS6503A51 |
CE-LS6503E51 |
|
5.38 |
CE-LS6503A53 |
CE-LS6503E53 |
|
|
|
|
|
 |
Specifications
- Factory Gladiator Width 68 in.
- Currie HD60 Center Section
- 35-Spline Inner/32-Spline Outer Chromoly Axles with 1-Ton 1480 U-Joints
- Accepts Stock Gladiator Outer Assemblies
- Requires High Clearance Tie Rod
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-LF6400A45 |
CE-LF6400E45 |
|
4.88 |
CE-LF6400A48 |
CE-LF6400E48 |
|
5.13 |
CE-LF6400A51 |
CE-LF6400E51 |
|
5.38 |
CE-LF6400A53 |
CE-LF6400E53 |
|
|
|
|
|
_1000.png) |
Specifications
- Factory Gladiator Width 68 in.
- Currie Low-Pinion 60 Center Section
- 40-Spline Axles
- Stock 5 x 5 Wheel Bolt Pattern
- Retains the Factory Gladiator Brake Assemblies
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-TR6100A45 |
CE-TR6100E45 |
|
4.88 |
CE-TR6100A48 |
CE-TR6100E48 |
|
5.13 |
CE-TR6100A51 |
CE-TR6100E51 |
|
5.38 |
CE-TR6100A53 |
CE-TR6100E53 |
|
|
|
|
|
|
Specifications
- 70 in. Overall Width (2 in. Over Gladiator)
- Currie Extreme 60 Center Section with Ring Gear Load Bolt
- 8 x 6.5 Wheel Bolt Pattern
- 14 in. Vented Rotors Front and Rear, Retains the Vehicles Calipers
- 35-Spline Inner/Outer Chromoly Front Axle Shafts
- 40-Spline Full-Float Rear Axles
- Requires Drive Shaft Modification or Replacement
Link To Product Page
|
|
|
|
|
RATIO |
ARB AIR LOCKER |
E-LOCKER |
|
4.56 |
CE-TS6503A45 |
CE-TS6503E45 |
|
4.88 |
CE-TS6503A48 |
CE-TS6503E48 |
|
5.13 |
CE-TS6503A51 |
CE-TS6503E51 |
|
5.38 |
CE-TS6503A53 |
CE-TS6503E53 |
|
|
|
|
|
