66 Mustang 9-inch Replica Housing


Included In Price:

  • Currie 9-inch Notchback K-code Replica Housing with Swaged Axle Tubes
  • Replica Leaf Spring Pads Installed at OE locations
  • Billet Small Bearing Housing Ends Accept the Stock Axles and Brakes
  • Factory Width

Options:

  • Choice of 28 or 31-Spline Axle Package
  • Includes Axles, Bearings, Retainers, Seals, and 1/2 In. Wheel Studs

SKU: CE-2000EMN
*
$1,050.00

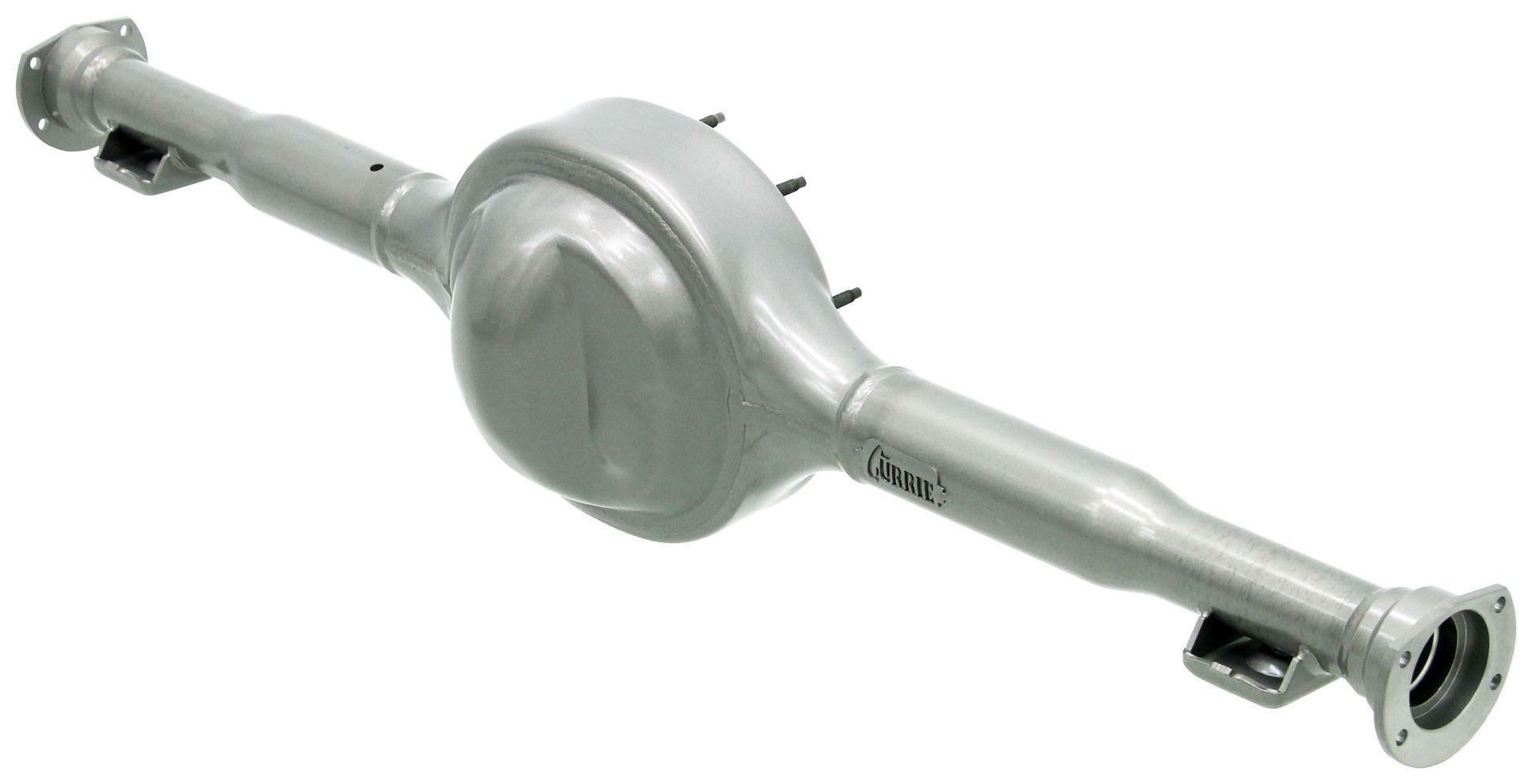

For the aficionado who wants the best, our 9-inch replica housings should interest you! This 100% new Ford 9-inch housing features our heavy-duty notchback housing with axle tubes that are swaged from 3-inches down to 2.250 and small bearing housing ends installed (just like the original), with replica leaf spring pads mounted in the OE location

Currie 9-inch Replica Housings are a direct bolt-in replacement for the stock factory 8-inch or 9-inch housings and will accept the original stock 9-inch housing's 28-spline third member, axles and wheel bearings as well as the OE brake components

If upgrading from an OE 8-inch rear-end (typically the case), a new 9-inch 28-spline third-member will be required to complete the installation

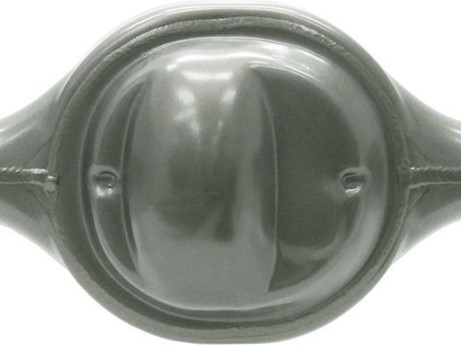

This housing is not intended for concourse-level restoration projects, as the weld appearance (ours look much better), vent location, and style differ from the original equipment. Additionally, we've eliminated the ugly fill plug from the rear cover



Standard Features

66 Mustang Replica   Currie Notchback Housing – 100% new, 9-inch heavy-duty notchback replica housing, built to resemble the original factory  K-code rear-end housing, minus the ugly fill plug

Swedged Tubes   Swedged Axle Tubes - Replica swaged axle tubes made from strong .188 wall DOM tube eliminate the bending issues associated with the OE rear-ends. The tubes are swaged from 3-inches down to 2.250-inches to keep that classic appearance

Replica Spring Pads   Spring Pads - Heavy-duty replica spring pads are located at the stock location for a direct bolt-in fit

Small Bearing Housing Ends   Housing Ends - Billet small-bearing housing ends accept the stock axles, retainers, and brake hardware

For the aficionado who wants the best, our 9-inch replica housings should interest you! This 100% new Ford 9-inch housing features our heavy-duty notchback housing with axle tubes that are swaged from 3-inches down to 2.250 and small bearing housing ends installed (just like the original), with replica leaf spring pads mounted in the OE location

Currie 9-inch Replica Housings are a direct bolt-in replacement for the stock factory 8-inch or 9-inch housings and will accept the original stock 9-inch housing's 28-spline third member, axles and wheel bearings as well as the OE brake components

If upgrading from an OE 8-inch rear-end (typically the case), a new 9-inch 28-spline third-member will be required to complete the installation



This housing is not intended for concourse-level restoration projects, as the weld appearance (ours look much better), vent location, and style differ from the original equipment. Additionally, we've eliminated the ugly fill plug from the rear cover



Standard Features

66 Mustang Replica   Currie Notchback Housing – 100% new, 9-inch heavy-duty notchback replica housing, built to resemble the original factory  K-code rear-end housing, minus the ugly fill plug

Swedged Tubes   Swedged Axle Tubes - Replica swaged axle tubes made from strong .188 wall DOM tube eliminate the bending issues associated with the OE rear-ends. The tubes are swaged from 3-inches down to 2.250-inches to keep that classic appearance

Replica Spring Pads   Spring Pads - Heavy-duty replica spring pads are located at the stock location for a direct bolt-in fit

Small Bearing Housing Ends   Housing Ends - Billet small-bearing housing ends accept the stock axles, retainers, and brake hardware
Products specifications
Vehicle Fitment 1966 Mustang: K-code 289 V8 vehicles
Housing Currie 9-inch notchback K-code replica housing with 3-inch x .188 wall DOM tube swaged to 2.250-inch
Axles Not included, reuses the original 1966 OEM 28-spline axles or new Currie 28/31-spline axles
Housing Ends Billet small bearing housing ends
Suspension Brackets Heavy-duty replica leaf spring pads installed in the OE location
Width 57.375 inches (between wheel mounting surfaces)
Oil Capacity 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)
